Introduction
Nanobiotechnology has revolutionized healthcare by driving significant advancements in developing innovative solutions for the prevention and treatment of wounds.1 Wounds, particularly chronic and complex ones, remain a global public health challenge, causing substantial economic burdens and negative psychosocial impacts, including prolonged treatment costs and reduced quality of life for affected individuals.2,3 Complex wounds, characterized by impaired or delayed healing processes, require a multifaceted approach involving tissue debridement, infection control, moisture balance, and advanced dressings that create an optimal environment for tissue regeneration.4
The application of nanotechnology in wound care has emerged as a powerful tool for addressing these challenges. Nanomaterials, such as metallic nanoparticles (NPs), offer unique physicochemical properties, including a high surface area-to-volume ratio and tunable size, that enable enhanced interactions with biological systems.5 These properties provide a platform for developing innovative wound care products with superior functionality, such as targeted antimicrobial action, controlled drug release, and enhanced wound healing. However, nanotechnology also poses challenges, such as potential cytotoxicity, environmental persistence, and the need for precise synthesis and characterization methods.6 Despite these limitations, the significant potential of nanotechnology in optimizing wound treatment drives ongoing research and innovation.
Biopolymers, particularly alginate (ALG), have been extensively explored in this field due to their biocompatibility, biodegradability, and ability to serve as platforms for bioactive dressing development.7 Alginate, a naturally derived hydrophilic polysaccharide, is especially valued for its gelling capacity and moisture retention properties, making it an ideal candidate for wound dressings. Its biodegradable, biocompatible, and bioadhesive characteristics further enhance its suitability for various forms, including hydrogels, microspheres, fibers, sponges, and membranes.8,9 The versatility of ALG has enabled the development of numerous commercially available wound care products.
Among these technologies, alginate-based hydrogels have garnered particular attention due to their cost-effectiveness, abundance, and adaptability. They are recognized for meeting the criteria of an ideal wound dressing, such as strong adherence to the wound surface, easy removal for cleaning, mechanical and thermal protection, moisture regulation, and the ability to deliver bioactive agents.10 However, traditional alginate dressings are limited in their antimicrobial efficacy and require functionalization with additional agents to address infection risks effectively.
Advances in nanobiotechnology have addressed these limitations by enabling the incorporation of metallic nanoparticles, such as silver nanoparticles (AgNPs), into alginate-based dressings. AgNPs have long been known for their potent antimicrobial properties, including antibacterial, antifungal, and antiviral activities, which are further enhanced at the nanoscale.11 Additionally, AgNPs offer anti-inflammatory and anticancer properties and have applications in biomedical device coatings, diagnostic imaging, and targeted drug delivery.12,13 This versatility has led to their inclusion in various commercially available wound care products.
The antimicrobial mechanisms of AgNPs involve disrupting microbial cell membranes, generating reactive oxygen species, and interfering with essential cellular processes, such as protein synthesis and DNA replication.14 These properties make them effective against sensitive and multidrug-resistant microorganisms, offering a valuable tool for combating antibiotic resistance. However, their use is not without challenges. The potential cytotoxicity of AgNPs, mediated by mitochondrial respiratory chain disruption, reactive oxygen species overproduction, and adenosine triphosphate synthesis inhibition, raises concerns about their safety in clinical applications.15 Additionally, the environmental accumulation of metallic nanoparticles necessitates the development of sustainable synthesis and disposal strategies.
Despite these challenges, integrating alginate with metallic nanoparticles, particularly AgNPs, represents a promising innovation in wound care. This combination enhances the antimicrobial properties of alginate-based dressings and improves their ability to modulate the wound microenvironment and accelerate the healing process. The exploration of alternative metallic nanoparticles, such as gold (Au), zinc oxide (ZnO), and titanium dioxide (TiO2), offers additional avenues for addressing the limitations of AgNPs while maintaining the advantages of nanotechnology in wound treatment.16,17
In this context, this scoping review aims to map and analyze the latest technological innovations in wound care involving alginate-based dressings functionalized with metallic nanoparticles. This approach seeks to provide insights into the benefits, limitations, and future potential of these advanced materials in addressing the complex challenges of wound management.
Methodology
Study design
This scoping review was conducted following the Joanna Briggs Institute (JBI) methodological framework,18–21 which provides a comprehensive approach to mapping the available evidence. The review was reported in accordance with the PRISMA-ScR (Preferred Reporting Items for Systematic Reviews and Meta-Analyses extension for Scoping Reviews) checklist,22,23 and the research protocol was registered on the Open Science Framework platform.
Research question
The research question was developed using the “Population, Concept, Context” framework recommended by JBI, resulting in the following question: What are the technological innovations in wound care involving dressings developed with alginate and metallic nanoparticles?
Eligibility criteria
Studies were included if they addressed any stage of the development of dressings containing alginate and metallic nanoparticles; were available in full in the consulted databases or other sources; and were written in English, Portuguese, or Spanish, with no restrictions on publication year or methodological approach. Duplicate studies were removed and considered only once.
Search strategy
Descriptors were selected from the Health Sciences Descriptors and Medical Subject Headings. The final search expression was: (“Metal Nanoparticles” AND alginate) AND (“Wound Healing” OR “Wound Infection”).
An initial calibration search was conducted in MEDLINE (via PubMed) to assess the sensitivity and specificity of the strategy. Once validated, the search was replicated in ScienceDirect, Web of Science, Scopus, LILACS, and SciELO. Additional studies were identified by screening the reference lists of included articles and through gray literature searches in Google Scholar (first 100 results). The search was completed on June 22, 2024.
Study selection

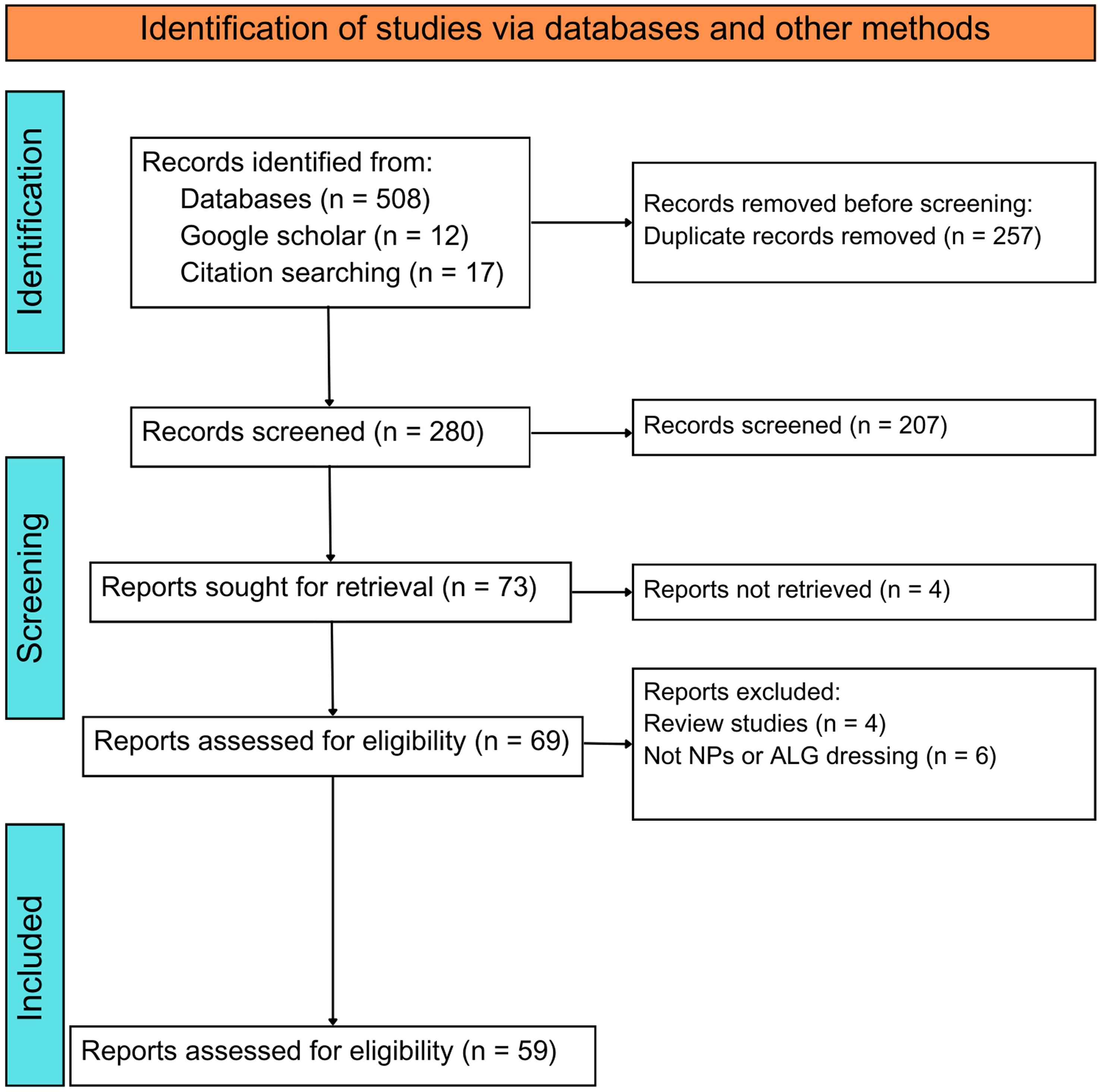

All retrieved references were imported into the Rayyan reference manager, where duplicates were removed. Two independent reviewers screened titles and abstracts, followed by full-text assessment according to the eligibility criteria. Discrepancies were resolved through discussion, with a third reviewer acting as arbitrator when necessary. The selection process is illustrated in Figure 1.
Data extraction and analysis
Data extraction was performed using a structured instrument developed by the authors in accordance with JBI guidelines. Extracted data included:
Bibliographic details (author, year, journal, and country of origin based on the first author’s affiliation);
Methodological approach;
Structural and functional components of the dressings;
Preparation methods, and
Reported therapeutic outcomes.
The data analysis consisted of a qualitative descriptive synthesis. Studies were grouped into thematic categories—geographical research distribution, structural composition of dressings, functionalization strategies, fabrication techniques, and therapeutic performance. Patterns, technological trends, and knowledge gaps were identified through iterative comparison of study characteristics. The synthesis was supported by summary tables, infographics, and narrative integration of findings.
Results

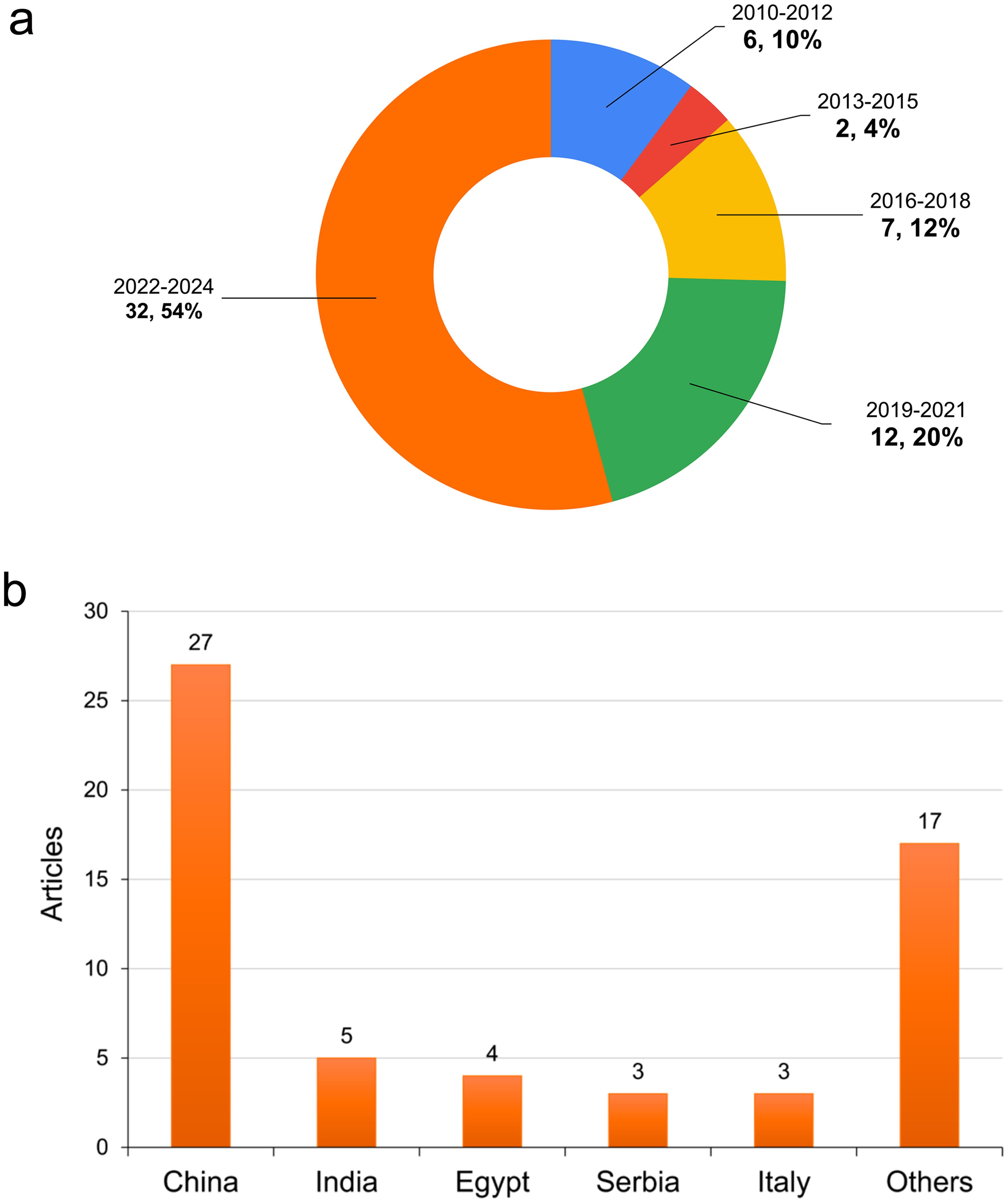

A total of 59 scientific articles met the inclusion criteria, covering studies conducted in Asia (66.1%), Europe (18.6%), Africa (10.2%), and the Americas (5.1%) between 2010 and 2024 (Fig. 2). Asia, particularly China, clearly dominates this field, reflecting its national investment in science, technology, and innovation as strategic pillars of development. This leadership is supported by robust research infrastructure, competitive funding, and international collaborations, combined with a growing domestic demand for advanced wound care solutions to address chronic wounds, diabetic ulcers, and age-related skin injuries. India also emerged as a strong contributor, prioritizing the development of cost-effective, biocompatible materials through environmentally friendly synthesis routes, often relying on indigenous algal species for alginate extraction. These initiatives align with policies aimed at positioning India as a hub for scalable biomedical technologies. In Europe, Italy and Serbia were notable, the former focusing on reinforcing alginate matrices with mechanical and bioactive enhancements, and the latter exploring antimicrobial applications of locally synthesized nanoparticles.
In Africa, Egypt adapted nanotechnology to local contexts by merging traditional medicinal knowledge with modern fabrication strategies. Meanwhile, the Americas produced comparatively fewer publications, though studies from Brazil and the United States offered important insights into antimicrobial alginate formulations for resource-limited healthcare environments. Taken together, this distribution underscores the emergence of a multipolar and collaborative scientific ecosystem in nanomedicine.
Across all studies, sodium alginate was the primary structural material, used either alone or in combination with natural or synthetic polymers such as chitosan, carboxymethyl chitosan, carboxymethyl cellulose, cellulose nanocrystals, gelatin, polyvinyl alcohol, polycaprolactone, or hyaluronic acid (Table 1).24–82 These combinations were reported to enhance stability, swelling behavior, tissue adhesion, and biodegradability, properties essential for effective wound healing.7–10 Among the functional agents, AgNPs were the most prevalent, appearing in more than 80% of the reviewed formulations. Their popularity is linked to broad-spectrum antimicrobial activity, low cytotoxicity at controlled doses, and prevention of biofilm formation.5,6,11 Other nanoparticles included ZnO (∼18%), TiO2 (∼8%), FeO (∼6%), CuO (∼6%), PdNPs (∼6%), and Au (∼4%). These alternatives offered additional benefits such as antioxidant activity, photothermal responsiveness, and catalytic effects.11–13 Beyond metallic agents, natural bioactives like curcumin, tamanu oil, epigallocatechin gallate, honey, and essential oils were incorporated to further enhance anti-inflammatory and regenerative properties while addressing concerns over antimicrobial resistance.
Table 1Compacted overview of references 24–82, highlighting main categories, methods, and designs of polymer-based biomaterials
| Group (Refs.) | Structural components (alginate association) | Functional components | Preparation | Dressings design |
|---|
| Alginate-based (25,29,30,33,42–44,47,51,54,55,63,65–67,72,73,75,77,79,80,82) | Alginate | NPs, Enzymes, Vitamins, Natural and synthetic compounds, Antibiotics, Laser irradiation | Water-soluble, Wet-spinning, Freeze-drying, Cross-linking, Water wash, Air-dried. | Hydrogel, Film, Sponge, Fibers, Beads, Discs, Sprayed gel, Scaffolds, Membrane, Wound dressing coating |
| Natural associations (24,28,31,36–38,40,41,45,46,48,49,56,58,60–62,64,78) | Chitosan, Cellulose, Gelatin, Natural gums, Hyaluronic Acid, Peptides and proteins | NPs, Proteins, Natural compound, Antibiotics, Metal organic framework materials, Photothermal treatment | Water-soluble, UV irradiation, Freeze-drying, Cross-linking, Water wash, Air-dried. | Hydrogel, Films, Sponge, Spheres, Wound dressing coating |
| Synthetic associations (26,27,35,39,52,53,59,69,70,71,74,76,81) | PCL, NIPAM, PVA, PVDF, DBS-CONHNH2, PEG, PEGDA, Carbopol | NPs, Growth Factor Plasmid DNA, Hemin, Natural and synthetic compounds | Water-soluble, UV irradiation, Electrospinning, Cross-linking, Water wash, Air-dried. | Hydrogel, Films, Fibers, Scaffolds, Membrane, Discs, Beads |
| Hybrid natural–synthetic blends (32,34,50,57,68) | Association of alginate, natural and synthetic polymers, and a plasticizing agent | NPs, coating agents, Antibiotics | Water-soluble, Magnetic stirring, Overnight soaking, Casting technique, Cross-linking. | Hydrogel, Films, Membrane, Dissolvable wound dressings |

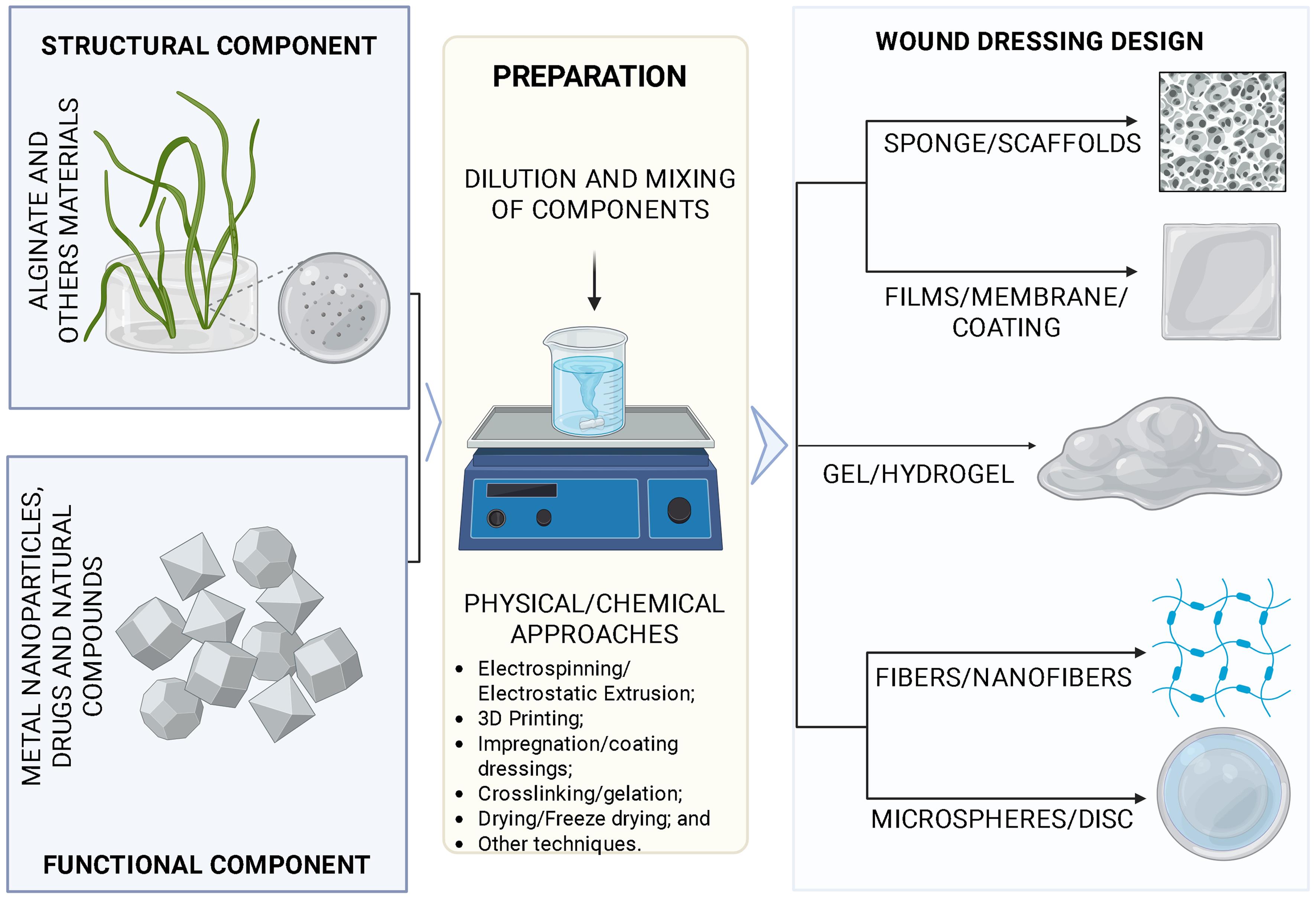

The choice of fabrication method was closely linked to the intended structural and functional outcomes (Fig. 3). Ionic crosslinking with CaCl2, CaCO3, glutaraldehyde or glucono-delta-lactone was the most common, producing dressing with tunable stiffness and swelling properties. Freeze-drying generated porous sponges and scaffolds, with high absorptive capacity, while electrospinning produced nanofibers and membranes that mimic the extracellular matrix, thereby promoting cell adhesion, proliferation, and oxygen diffusion, whereas photocrosslinking stabilized hydrogel networks with photosensitive compounds, enabling precise control over morphology and mechanics.
The distribution of formulation types revealed a predominance of hydrogels, which accounted for more than 50% of the reported systems. Microbeads, fibers, and discs represented over 30%, while films and membranes accounted for approximately 20%. Coating applications in wound dressings constituted about 10%. Regarding biological evaluations, most studies reported in vitro antimicrobial activity and included cytotoxicity assays. A smaller number involved in vivo animal models, and only a few presented preliminary clinical findings.

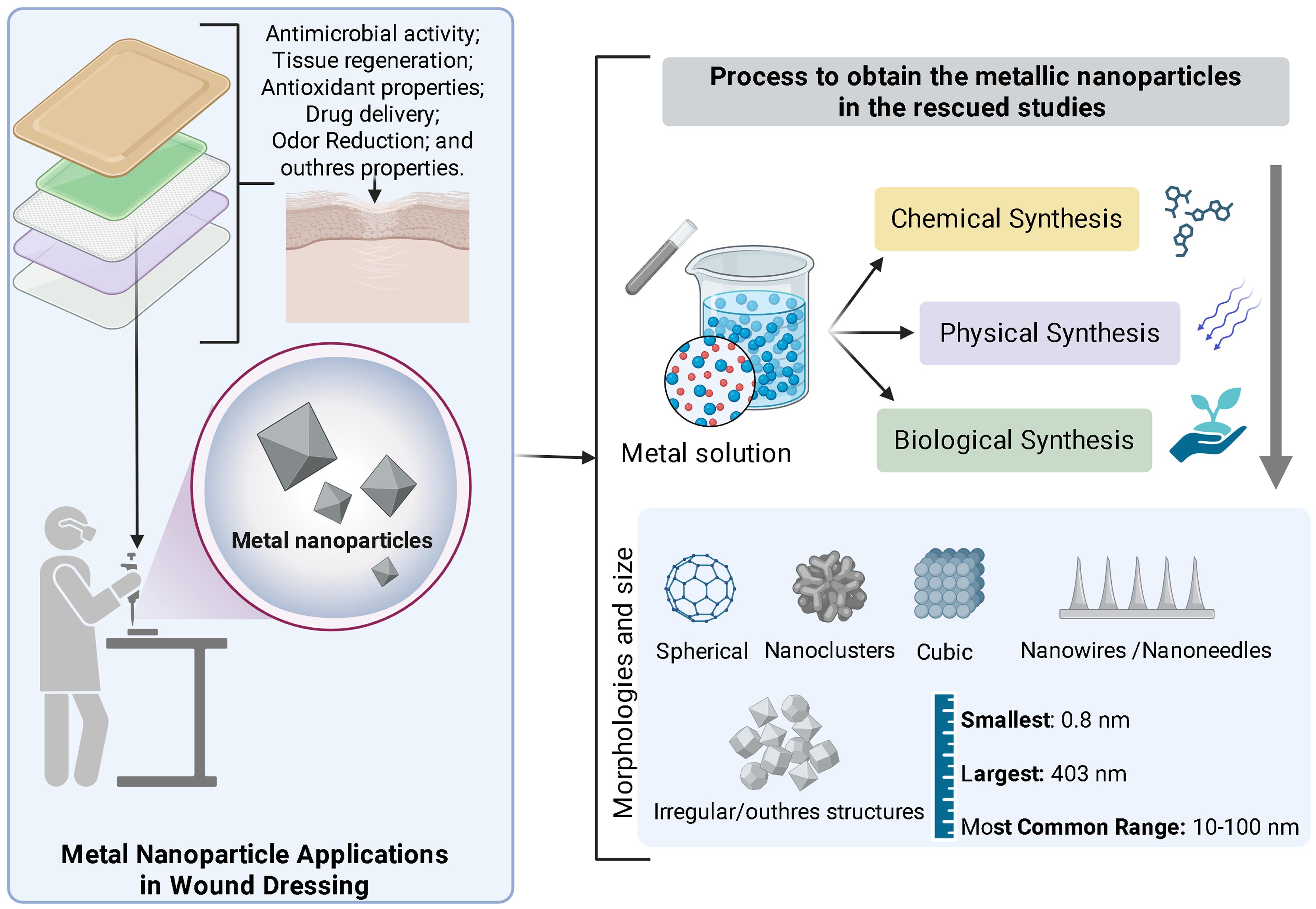

Nanoparticles were synthesized by chemical, physical, and increasingly by green methods, with synthesis routes strongly influencing size, morphology, and surface chemistry (Table 2, Fig. 4).24–82 As summarized in Table 2, AgNPs are typically produced via chemical reduction (Sodium borohydride, sodium citrate, trisodium citrate dimethyl formamide, carboxymethyl chitosan, ascorbic acid, epigallocatechin gallate, sodium alginate, lysozyme, tannic acid, sericin protein, LMWG 1,3:2,4-di(4-acylhydrazide)-benzylidenesorbitol (DBS-CONHNH2), Tannic acid and Fe complexes (Ta/Fe), and d-glucose) yielding spherical, face-centered cubic structure, dotted structures, nanoclusters, and quasi-spherical structures ranging from 0,8–403 nm.24–36,38–40,43–55,57,58,60–63,65,66,68,70–72,75,76 AuNPs synthesized through sodium citrate reduction exhibit uniform spherical morphologies (15–25 nm),41,64 whereas CuNPs prepared via hydrothermal and one-pot synthesis form spherical or rod-like shapes of 50–300 nm.56,77 ZnO nanoparticles produced via sol-gel, co-precipitation, or hydrothermal approaches display diverse morphologies, including spheres, rods, hexagons, rectangles, and sheet-like, within 30–101 nm.37,53,57,67,69,70,74,78,80
Table 2Summary of precursors, synthesis methods, sizes, and morphologies of nanoparticles reported in the literature
| Nanoparticles | Precursor | Synthesis approach | Size range (nm) | Morphology | Refs |
|---|
| Ag | AgNO3, Ag2SO4 | Photoreduction (ultraviolet light 365 nm), Chemical reduction (sodium borohydride, sodium citrate, trisodium citrate dimethyl formamide, carboxymethyl chitosan, ascorbic acid, epigallocatechin gallate, sodium alginate, lysozyme, tannic acid, sericin protein, LMWG 1,3:2,4-di(4-acylhydrazide)-benzylidenesorbitol (DBS-CONHNH2), Tannic acid and Fe complexes (Ta/Fe), and d-glucose), Electrochemical synthesis, Green synthesis | 0.8 – 403 | Spherical, face-centered cubic structure, dotted structures, nanoclusters, quasi-spherical | 24–36,38–40,43–55,57–58,60–63,65,66,68,70–72,75,76 |
| Au | HAuCl4 | Chemical reduction (sodium citrate) | 15 – 25 | Spherical | 41,64 |
| Cu | Cu(NO3)2·xH2O | Hydrothermal, one-pot synthesis | 50 – 300 | Spherical, rod-shaped | 56,74,77 |
| ZnO | ZnCl2, Zn(OAc)2, Zn(CH3COO)2·xH2O | Sol-gel, hydrothermal method, Co-precipitation | 30 – 101 | Spherical, rod-shaped, hexagonal and rectangular-shaped, sheet-like | 37,53,57,67,69,70,74,78,80 |
| FexOx | FeSO4·7H2O, Fe(acac)3 | Solvathermal synthesis, sol-gel approach, chemical reduction (ethylene glycol) | 5 - 64 | Spherical, cubic shapes | 70,80,81 |
| TiO2 | TiCl4, Ti (Commercially plates), Ti(acac)2OiPr2, Ti(O-i-Pr)4 | Green synthesis, Hydrothermal method | 5 - 100 | Nanoneedles | 59,73,80,82 |
| Pd | PdCl2 | Green synthesis | ∼7 – 45 | Spherical | 42,55,79 |
| Other (VOx, MgO, GeO2, Al2O3) | VO2, MgCl2, Ge(OEt)4, Al(O-i-Pr)3 | Solvothermal method, chemical precipitation, sol-gel approach | 10 – 200 | Nanowires, rectangular and rod-shaped, spherical | 43,70,80 |
Discussion
Recent advances in biomaterials for wound healing reveal that natural polysaccharides, synthetic polymers, and hybrid nanocomposites can be strategically combined to achieve multifunctional dressings. Alginate-based systems, often blended with chitosan, PEG, or protein-based polymers, have been functionalized with oxide metallic nanoparticles (AgO, ZnO, TiO2, CuO, FeO) and others bioactive compounds to enhance antimicrobial activity, and tissue regeneration. Electrospun nanofibers, hydrogels, films, and 3D scaffolds have demonstrated controlled drug release, extracellular matrix-mimicking structure, and responsiveness to stimuli such as pH and temperature, showing superior healing outcomes compared to conventional dressings.
In recent years, hybrid and smart systems have expanded the potential of alginate-based dressings. Dual-drug nanofibers, photothermal hydrogels, and electroactive composites were frequently reported as strategies to achieve multifunctionality. These dressings can respond to stimuli such as pH, temperature, or light, aligning with the concept of personalized wound care. For example, Zhao et al.24 developed an electroactive hydrogel of oxidized sodium alginate and carboxymethyl chitosan embedded with AgNPs, which promoted fibroblast proliferation, angiogenesis, and collagen deposition while exerting anti-inflammatory effects. Wang et al.27 introduced a thermosensitive ALG-EDA/NIPAM-co-HEMIN formulation with AgNPs that transitioned into a hydrogel at body temperature, showing strong antibacterial activity against E. coli and S. aureus and stimulating collagen synthesis in diabetic mice. Likewise, pH-responsive hydrogels based on carboxyethyl chitosan/oxidized alginate with AgNPs demonstrated effective hemostasis, broad antimicrobial activity, and biocompatibility.61
The most extensively studied systems (Table 1) were valued for their tunable rheology, moisture retention, and ability to maintain a pro-healing environment. Yet, conventional ionically crosslinked hydrogels often lack stability under physiological conditions.83 Recent modifications, such as incorporating oxidized alginate with amine-rich polymers (e.g., gelatin, chitosan), have enabled covalent crosslinking via Schiff bases, improving durability and resistance to premature degradation.4 Electrospun nanofibers, often loaded with AgNPs and phytochemicals, mimicked extracellular matrix properties and provided high porosity for drug release. These systems showed antimicrobial, hemostatic, and regenerative activity.25,26,39,43,54,67 Comparative studies reported superior healing outcomes in animal models compared to commercial dressings.84
Porous sponges combined strong absorptive capacity with adaptability to irregular wounds.85 Calcium alginate/lysozyme/AgNP sponges and chitosan/alginate sponges with sericin-AgNPs and curcumin promoted angiogenesis,33,40 reduced inflammation, and controlled infections. Films offered wound protection and controlled release of active agents.37,38,45,46,49,54,59,82 Alginate membranes with hyaluronic acid and AgNPs accelerated healing while preventing biofilm formation.34 The only Brazilian study identified tested sodium alginate films esterified with poly(3-hydroxybutyrate) and PEG, loaded with AgNPs, which showed promising preclinical results.68 Alginate coatings improved textile-based dressings. Nonwoven fabrics coated with alginate and AgNPs (sometimes with essential oils) displayed synergistic antimicrobial activity and enhanced healing.63,65
Smaller nanoparticles generally exhibit greater antimicrobial potency but also carry higher cytotoxicity risks.86,87 AgNPs remain the most extensively studied, although cost, long-term safety, and potential resistance remain concerns.88 Green synthesis strategies, often employing plant extracts or microbial systems,40,46,54 are increasingly favored due to reduced toxicity and environmental impact,89 though scalability and reproducibility continue to be challenging. Other oxide metallic nanoparticles, including MgO, TiO2, VO, FeO, CuO, ZnO, Al2O3, GeO, Pd, and Au NPs, have been explored, but clinical translation is limited by insufficient biosafety data.16,90
Consistently, physicochemical attributes such as size, shape, and surface chemistry determine biological performance.91–93 For instance, ultra-small AgNPs (<1 nm) demonstrate potent antibacterial activity without detectable cytotoxicity,58 whereas anisotropic AuNPs show higher cytotoxicity than their spherical counterparts.93 Despite substantial progress, challenges remain: ionically crosslinked hydrogels are unstable under physiological conditions, AgNPs dominate the field despite cost and toxicity concerns, and alternative metallic nanoparticles require systematic toxicological evaluation for safe clinical translation.
The next stage of development for alginate–nanoparticle wound dressings will depend on refining synthesis and functionalization strategies to meet the complex demands of modern wound care. Technologies such as 3D printing and stimuli-responsive platforms (Fig. 4) hold strong potential for personalized and adaptive therapies, while advances in standardization, regulation, and clinical validation will be critical to ensure their safe and effective application in patients.
Future directions
Despite advances in alginate–metallic nanoparticle dressings, critical gaps hinder clinical translation. Most studies are limited to in vitro assays, with few in vivo evaluations and only minimal clinical data. Long-term biocompatibility, degradation kinetics, and immunological consequences of these composites remain poorly understood, particularly regarding the fate of metallic degradation products in chronic wound environments.
Variability in synthesis methods, nanoparticle characterization, and biological testing complicates reproducibility and data comparability. Establishing standardized fabrication protocols, reporting guidelines, and performance criteria is essential to ensure reliable benchmarking and accelerate translation from laboratory research to clinical application.
Multi-component dressings combining different nanoparticles or natural bioactives show synergistic antimicrobial and regenerative effects, yet the underlying molecular mechanisms and optimal formulations remain unclear. Stimuli-responsive dressings offer innovative functionality, but their stability and predictable performance under dynamic wound conditions have not been fully demonstrated, highlighting the need for systematic in vivo studies.
Green synthesis approaches are gaining attention due to lower toxicity and environmental impact, but scalability and life-cycle assessments are limited. Addressing these challenges will require interdisciplinary collaboration, integration of regulatory frameworks from early development stages, and adoption of advanced fabrication strategies such as 3D printing to create safe, sustainable, and clinically effective next-generation wound care platforms.
Conclusions
Alginate-based dressings functionalized with metallic nanoparticles represent a promising advancement in wound management, combining biocompatibility with enhanced antimicrobial and regenerative properties. AgNPs remain the most explored due to their efficacy and commercial availability; however, concerns regarding cost, cytotoxicity, resistance, and uncontrolled ion release necessitate safer, more sustainable approaches. Strategies such as green synthesis, smart-release systems responsive to pH or temperature, and composite formulations with structural enhancers show strong potential to address these limitations. The exploration of alternative nanoparticles (e.g., TiO2, ZnO, Cu, Au) offers new opportunities but requires rigorous validation to ensure biosafety and clinical applicability. Future progress will rely on integrating innovative synthesis, precise dosage control, and advanced fabrication techniques such as 3D printing, alongside robust regulatory frameworks. These combined efforts can pave the way for next-generation wound dressings that are effective, safe, and tailored to patient-specific needs.
Declarations
Funding
This study received financial support from the Research Support Foundation of the State of Alagoas (FAPEAL), the Coordination for the Improvement of Higher Education Personnel (CAPES), the Northeast Biotechnology Network (Rede Nordeste de Biotecnologia – RENORBIO), and the National Council for Scientific and Technological Development (CNPq). Productivity Grant No. 309813/2023-9 (ACAS).
Conflict of interest
The authors declare no conflict of interest.
Authors’ contributions
Conceptualization (DPS, ACAS), methodology (ASS, JJSN), investigation (DPS, LMMS), formal analysis (JVMS), data curation (DPS, ASS), validation (LMMS, IFM), resources (JJSN, IFM, RTFM), visualization (DPS), writing – original draft preparation (DPS), writing – review & editing (ASS, JVMS, LMMS, JJSN, IFM, RTFM, ACAS), supervision (RTFM, ACAS), project administration (ACAS), and funding acquisition (ACAS). All authors have read and approved the final version of the manuscript.
