Introduction
Hepatocellular carcinoma (HCC) is the most commonly diagnosed primary liver cancer. The complex immune environment in liver cancer has a crucial role in the progression of this disease.1,2 Macrophages are important regulators of the tumor immune microenvironment (TME).3 In general, macrophages can polarize into two distinct phenotypes, the classically activated M1 macrophages and the alternative activated M2 macrophages. M1 macrophages have pro-inflammatory and antitumor activity, while M2 macrophages suppress inflammation and participate in angiogenesis.4,5 Available evidence suggests that tumor-associated macrophages have an M2-like phenotype and are associated with poor prognosis in many malignancies.6–8 In HCC, M2 macrophages facilitate the migration and invasion of tumor cells and are usually associated with a poor prognosis.3,9 Various cytokines and proteases secreted by M2 macrophages are involved in the inhibition of CD8+ T cells, tumor neovascularization, and tumor metastasis.10
IGF2BP3, located on chromosome 7p15.3 in humans, is weakly expressed in normal adult tissue but is dramatically elevated during carcinogenesis.11–13 It activates signal pathways related to cell growth and promotes the differentiation, proliferation, invasion, and metastasis of HCC cells.14–18 In colon cancer, IGF2BP3 acts as a N6-methyladenosine reader to regulate the tumor cell cycle.19 IGF2BP3 also promotes the expression of drug resistance genes, leading to drug resistance of tumors.20 However, there is a paucity of studies investigating the role of IGF2BP3 in regulating immune cells within the TME. Bioinformatics analysis showed that high IGF2BP3 expression in clinical bladder cancer tissues was associated with the infiltration of multiple immune cells, including neutrophils and macrophages.21 Additionally, bioinformatics analysis indicated that N6-methyladenosine-related gene clusters, including IGF2BP3, were closely associated with the infiltration of a variety of immune cells in HCC, including follicular helper T cells and macrophages.22 The results suggest a potential regulatory role of IGF2BP3 in the immune microenvironment of HCC. However, further study is required to obtain more definitive evidence. In this study, we explored the role of IGF2BP3 in the tumor immune microenvironment of HCC. The focus of the study was to investigate the effects of IGF2BP3 on immune cells including macrophages as well as CD8+ T cells. We also investigated the key molecules and mechanisms mediating the function of IGF2BP3.
Methods
Bioinformatics analysis
Bioinformatic analysis was performed using publicly available data from various databases. The expression of IGF2BP3 in liver cancer and corresponding normal tissues was analyzed with the GEPIA2 online tool (http://gepia2.cancer-pku.cn/#index ). In addition, its expression at the single-cell level in the HCC tumor microenvironment was investigated using TISCH (http://tisch.comp-genomics.org/home/ ). IGF2BP3 expression in HCC samples at different stages and grades was analyzed on TISIDB (http://cis.hku.hk/TISIDB/ ). The relationship between IGF2BP3 expression and infiltration of various immune cells was analyzed in CAMOIP (https://www.camoip.net/ ). The association of the infiltration level of macrophages combined with IGF2BP3 expression and the overall survival rate of HCC patients was evaluated using TIMER (http://cistrome.org/TIMER/ ). The correlation between IGF2BP3 and immunosuppressive markers was analyzed in the TCGA HCC dataset (https://portal.gdc.cancer.gov/ ) (n=371).
Cell lines and reagents
Raw264.7 mouse macrophage cells and Hepa1-6 mouse hepatoma cells were obtained from the American Type Culture Collection (Manassas, VA, USA). Cells were cultured in Dulbecco’s modified Eagle’s medium (06-1055-57-1A; Biological Industries, Los Angeles, CA, USA) supplemented with 10% fetal bovine serum (10099-141; Thermo Fisher Scientific, Waltham, MA, USA) and 1% penicillin and streptomycin (15140122; Thermo Fisher Scientific). Cells were cultured at 37°C and 5% CO2.
Construction of plasmids
The clustered regularly interspaced short palindromic repeat/Cas9 endonuclease (CRISPR/Cas9) was used to knock out Igf2bp3 in Hepa1-6 cells. Plasmids containing gRNAs (TTCGTGGACTGCCCGGACGAGGG or AGACACTTTCCAGGTCCGCGGGG) targeting murine Igf2bp3 were purchased from Ubigene_Bio and transfected into the Hepa1-6 cells. Cells successfully transfected were labeled with enhanced green fluorescent protein and sorted into single cells. Single clones were collected to confirm the knockout efficiency. The original plasmid of the trimolecular fluorescence complementation (TriFC) system was a gift from Professor Zongqiang Cui (State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan 430071, China), and the plasmids were constructed as previously described.23 The Ccl5-7 or Tgf-β1-28 fragment, which had been screened by RNA immunoprecipitation, was cloned into the pECFP-C1-ms2 plasmids, namely pECFP-C1-MS2-Ccl5-7 or pECFP-C1-MS2-Tgf-β1-28. The coding sequence of Igf2bp3 was inserted into the pMN155 plasmid, namely pIgf2bp3-MN155.
Animal model and treatment
The animal study was approved by the Ethics Review Committee of the Peking Union Medical College (Beijing, China). Six-week-old, male C57BL/6J mice were purchased from Beijing Vital River Laboratory Animal Technology Co. Ltd. (Beijing, China). Briefly, 5×106 Hepa1-6 Igf2bp3 wild-type and Igf2bp3 knockout cells were subcutaneously implanted in the right flank of each mouse. Tumor size was measured starting on day 5, and the mice were sacrificed on day 18 after inoculation. For treatment experiment, tumor-bearing mice were administered intraperitoneal injection of anti-CD47 mAb (400 µg per mouse) (BE0270; Bio X Cell, Lebanon, NH, USA) on the seventh day after tumor implantation and then every 3 days for a total of five doses.
Western blotting
To extract total protein, cells were lysed with RIPA lysis and extraction buffer (89901; Thermo Fisher Scientific), followed by centrifugation at 13,000 g for 15 m. Protein concentration was determined with Pierce Rapid Gold bicinchoninic acid assay kits (A53226; Thermo Fisher Scientific) and the protein samples were resolved by sodium dodecyl-sulfate polyacrylamide gel electrophoresis and transferred to 0.22 µm polyvinylidene difluoride membranes (1620177; Bio-Rad, Hercules, CA, USA). Membranes were blocked with 5% bovine serum albumin for 1.5 h and the membranes were incubated overnight with primary antibodies against IGF2BP3 (ab177477; Abcam, Cambridge, UK), TGF-β1 (ab215715; Abcam), CCL5 (AF5151; Affinity Biosciences, Cincinnati, OH, USA), ARG1 (A1847; ABclonal, Woburn, MA, USA), and NOS2 (A14031; ABclonal) at 4°C. The next day, the membranes were washed and incubated with secondary antibodies for 1 h, and read using a high-sig enhanced chemiluminescence western blotting substrate (180-5001; Tanon Science & Technology Co, Ltd, Shanghai, China). Band quantification was performed with ImageJ software.
Enzyme-linked immunosorbent assay (ELISA)
Tumor cell culture supernatants were collected by centrifugation. Mouse TGF-β1 ELISA kits (EK981-96; MultiSciences, Bellingham, WA, USA) and mouse CCL5/RANTES ELISA kits (EK2129/2-96; MultiSciences) were used to determine the concentration of TGF-β1 and CCL5.
T-cell cytotoxicity
Ninety-six-well plates were precoated with CD3 (1 µg/mL) antibody 1 day in advance. Splenocytes from Hepa1-6-bearing C57BL/6J mice were lysed and centrifuged to prepare single-cell suspensions and CD8+ T cells were isolated following the instructions included with EasySep mouse CD8+ T-cell isolation kits (19853; STEMCELL, Vancouver, Canada). The CD8+ T cells were stimulated and activated for 48 h by addition of CD28 antibody (2 µg/mL) and recombinant mouse interleukin (IL)-2 (10 ng/mL). The CD8+ T cells were then cocultured with tumor cells at ratios of 1:1, 2:1, 4:1, 5:1, 8:1 and 10:1 for 5 h. The cells were collected for flow cytometry assay.
Migration assay
For migration assays, Raw264.7 cells (1×106 cells/mL) were seeded in 100 µL DMEM (1% FBS) onto 8 µm pore size polycarbonate filter membranes in 24-well plates. Tumor cell culture supernatant was added to the well beneath the membrane. After 48-h incubation, nonmigrating cells on the upper surface of the membrane were gently removed with a cotton swab. The cells that had migrated to the lower surface of the membrane were fixed and stained with 0.1% crystal violet for 10 m. After washing with phosphate buffered saline (PBS) three times, the top chamber was dried with a cotton swab and photographed using a light microscope.
Immunofluorescence
Cells and tumor sections were fixed in 4% paraformaldehyde solution followed by immunohistochemical staining using standard procedures and the following antibodies: ARG1 (1:200; A1847; ABclonal), NOS2 (1:200; A14031; ABclonal), CD206 (1:1,000; ab64693; Abcam).
RNA extraction and real-time quantitative PCR (qRT-PCR)
Total RNA was extracted by Trizol reagent (A33252; Thermo Fisher Scientific) and first-strand cDNA was synthesized using HiScript II Q RT SuperMix reagent (R223-01; Vazyme Biotech, Nanjing, Jiangsu, China). qRT-PCR was conducted with qPCR Master Mix (Q311-02; Vazyme). The primers used are listed in Supplementary Table 1.
Flow cytometry
To prepare for surface staining, cells were diluted in PBS with 2% FBS to a concentration of 106 cells per 100 µL and incubated with fluorescently labeled antibodies for 30 m at 4°C. After surface staining, intracellular staining was performed with incubation in fixation buffer and permeabilization (88-8824-00; eBioscience, San Diego, CA, USA), followed by the staining protocol described above. Cells were washed and collected using Accuri C6 Plus (BD Biosciences, Franklin Lakes, NJ, USA) and data were analyzed with FlowJo software (version 10). The following antibodies (all from Biolegend, San Diego, CA, USA) were used: CD3 (100205), CD8 (100705), CD45 (103129), F4/80 (123125), CD206 (162505), I-A/I-E (MHCII) (107605), CD11b (101205), CD4 (100407), Gr-1 (108411), CD19 (152403), and NK1.1 (156507).
RNA immunoprecipitation (RIP)

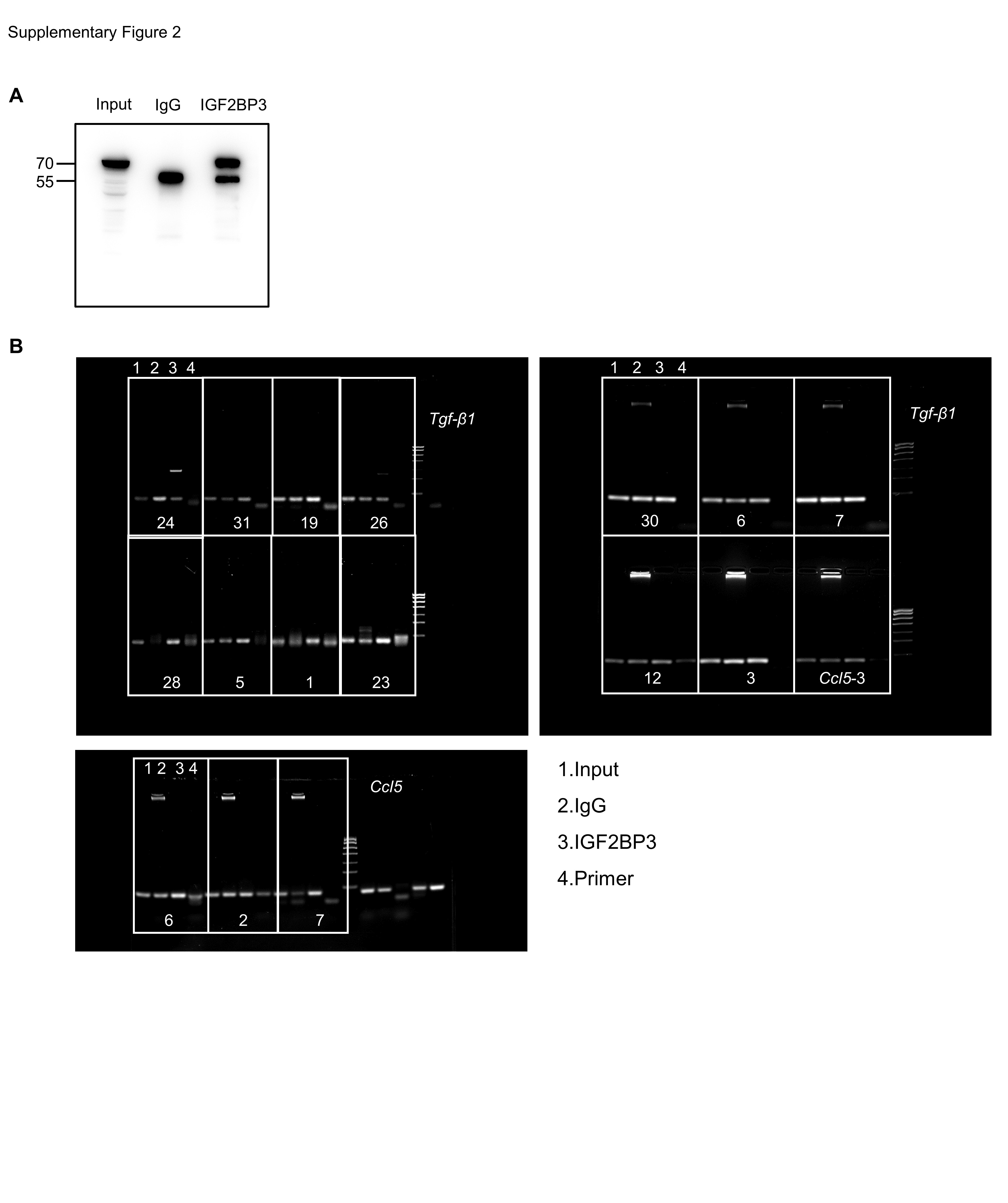

For RNA immunoprecipitation, cells were lysed and the RNA was extracted with Magna RIP kits (17-700; Millipore, Burlington, MA, USA). The efficiency of immunoprecipitation was determined by western blotting. The quality of input RNA was measured with a NanoDrop spectrophotometer.
Novel far-red fluorescence complementation
Expression vectors were cotransfected into 293T cells with Lipofectamine 2000 reagent (Invitrogen, Waltham, MA, USA). According to the manufacturer’s protocol,23 transfected cells were incubated at 37°C in 5% CO2 for 5–6 h and then at 30°C in 5% CO2 for 18–24 h until imaging. Cells were imaged with a Leica DMi8 inverted microscope.
Statistical analysis
Results were reported as mean±SD, normality distribution was established, and GraphPad Prism 9 software was used for the statistical analysis. Student’s t-test was used for comparison between groups and p-values <0.05 was considered significant.
Results
Expression of IGF2BP3 is increased in HCC and is positively correlated with macrophage infiltration

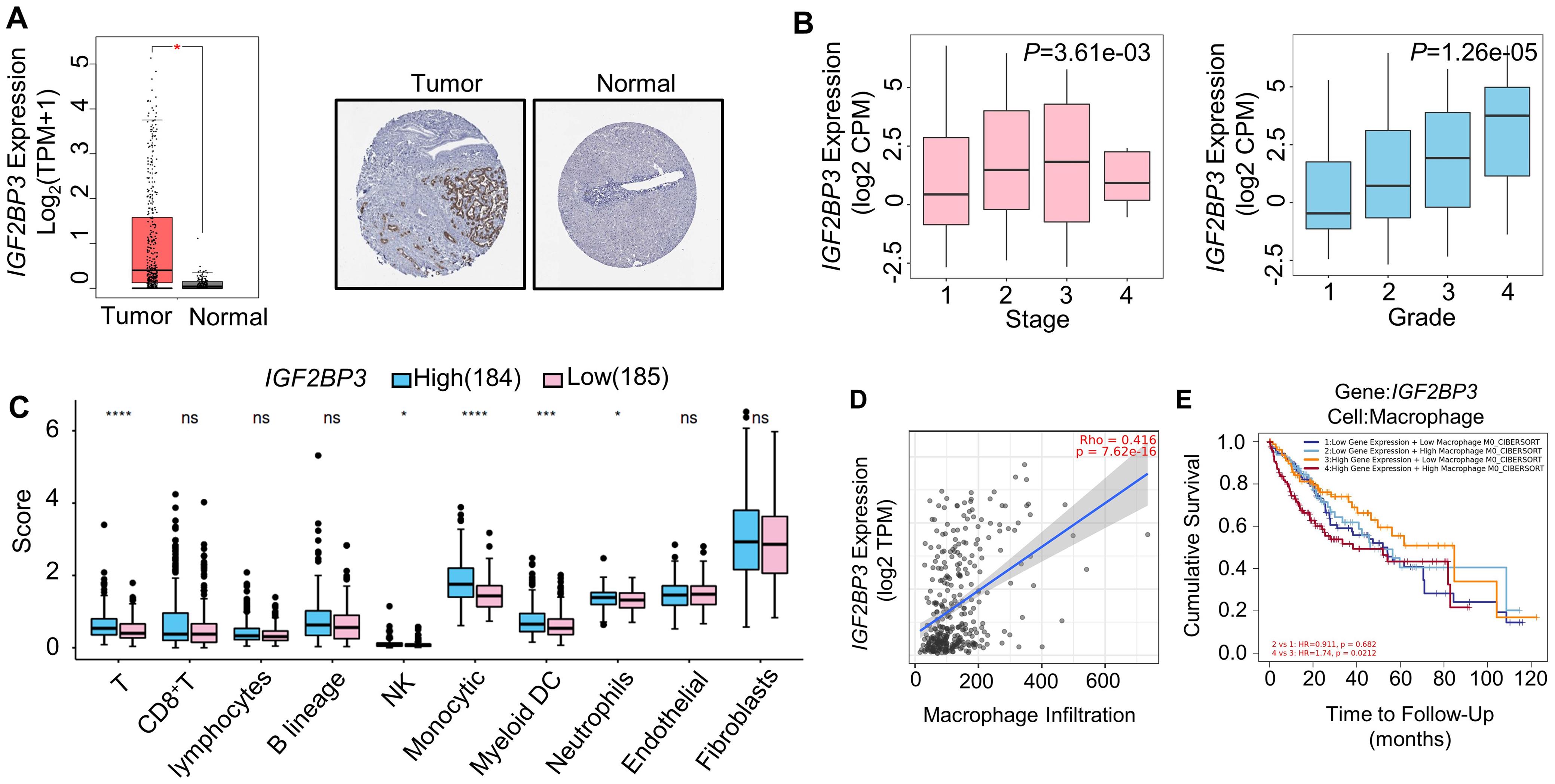

We first analyzed the expression of IGF2BP3 in clinical HCC samples through GEPIA2. Simultaneously, we used the immunohistochemistry data from the Human Protein Atlas portal (https://www.proteinatlas.org/ ) to observe the protein expression of IGF2BP3 in HCC (Fig. 1A). We found that the expression of IGF2BP3 in tumor tissue was significantly higher than that in normal tissue (p<0.05). Then, we assessed the expression of IGF2BP3 in individual cells of HCC from TISCH. The results revealed that IGF2BP3 was mainly expressed in malignant tumor cells (Supplementary Fig. 1A). We further used TISIDB website to analyze the expression of IGF2BP3 in HCC tissues with different pathologic stages (p=3.61e-03) and histologic grades (p=1.26e-05); the results demonstrated that the expression of IGF2BP3 increased with HCC progression (Fig. 1B). Next, we used CAMOIP and TIMER to investigate the potential correlation of IGF2BP3 with immune cell infiltration in HCC (Fig. 1C–D, Supplementary Fig. 1B). The findings indicated a positive relationship between macrophage infiltration and IGF2BP3 expression. We also observed that the group with high IGF2BP3 expression and high macrophage infiltration had significantly poorer survival than the group with high IGF2BP3 expression and low macrophage infiltration (p=0.0212; Fig. 1E). Collectively, the data demonstrate a positive association between IGF2BP3 and infiltration of macrophages.
IGF2BP3 facilitates macrophage migration and polarization in vitro
To verify whether IGF2BP3 promoted macrophage migration in vitro, we generated stable Igf2bp3-knockout Hepa1-6 cells with specific gRNA1 and gRNA2 (Igf2bp3_ko1 and Igf2bp3_ko2) by using the CRISPR/Cas9 technology. The knockout efficiency was validated by qRT-PCR (p<0.001) and western blotting (Fig. 2A). We then examined the migration of Raw264.7 after treatment with different tumor cell culture supernatants using Transwell assays. The results showed significant reduction in macrophage migration after stimulation by the supernatant of Igf2bp3 knockout cells compared with that of Igf2bp3_wt (Igf2bp3_wild-type) Hepa1-6 cells (Fig. 2B) (p<0.001). We chose Igf2bp3_ko1 for the next study, named Igf2bp3_ko. Previous bioinformatics analysis had found a correlation of IGF2BP3 expression with macrophage infiltration, and infiltration of M2 macrophages has been reported to promote HCC progression.9 Therefore, it was hypothesized that tumor-cell derived IGF2BP3 was critical in M2 polarization. We conducted qRT-PCR to evaluate the expressions of M1 (Nos2, Il-1β, Tnf-α, Cxcl9) and M2 (Arg1, Ccl22) macrophage relevant markers in Raw264.7 cells after stimulation with culture supernatants of Igf2bp3_wt and Igf2bp3_ko cells for 48 hours. The results showed that M1 markers, Nos2 (p<0.01), Il-1β (p<0.001), Tnf-α (p<0.01), and Cxcl9 (p<0.05) were increased while M2 marker, Arg1 (p<0.01), and Ccl22 (p<0.05) were decreased after stimulation with Igf2bp3_ko cell supernatant (Fig. 2C). Western blotting results showed that ARG1 decreased while NOS2 increased after stimulation with Igf2bp3_ko cell supernatant (Fig. 2D). The same results were observed on cell immunofluorescence staining (Fig. 2E). Collectively, the data indicated that IGF2BP3 in tumor cells promoted migration and M2 polarization of macrophages.
IGF2BP3 promotes tumor progression and facilitates macrophage infiltration and polarization in mouse HCC model
As IGF2BP3 has been shown to promote macrophage migration and polarization in vitro, we explored the situation in vivo. C57BL/6J mice were given a subcutaneous injection of 5×106Igf2bp3_wt or Igf2bp3_ko cells and the tumor growth was monitored. We observed that after knocking out Igf2bp3 in Hepa1-6 cells, the tumor volume increased much slower than it did in the wild-type group (Fig. 3A) and tumor weight was significantly reduced (p<0.01; Fig. 3B). The knockout group also showed improved survival (p=0.001; Fig. 3C). We then analyzed the infiltrating immune cells in tumor tissue and found that the proportion of CD11b+monocytes (p<0.05), total F4/80+macrophages (p<0.05), and F4/80+CD206+ M2 macrophages (p<0.05) was significantly lower in Igf2bp3_ko tumors than in Igf2bp3_wt tumors (Fig. 3D). Immunofluorescence staining revealed a significant reduction (p<0.01) in CD206+ cells in Igf2bp3_ko tumors (Fig. 3E). The findings suggested that IGF2BP3 promoted macrophage infiltration and polarization. Interestingly, as shown in Figure 3D, we also observed greater infiltration of CD3+ T (p<0.01), CD4+ T (p<0.01), CD8+ T (p<0.05), F4/80+MHCII+ M1 macrophages (p<0.01), CD19+ B (p<0.001), and NK1.1+ NK (p<0.001) cells in the Igf2bp3_ko tumors than in the Igf2bp3_wt tumors. However, the infiltration of CD11b+Gr-1+ myeloid-derived suppressor cells (p<0.01) in Igf2bp3_ko tumors was less than that in the Igf2bp3_wt tumors, suggesting that IGF2BP3 induced a suppressive tumor immune microenvironment. Collectively, the data suggest that IGF2BP3 promoted tumor progression and facilitated infiltration and M2-polarization of macrophages in the mouse HCC model.
IGF2BP3 facilitates macrophage infiltration and polarization by promoting the secretion of CCL5 and TGF-β1 from tumor cells
Cytokines have an important role in the infiltration of immune cells. Macrophage infiltration and M2 polarization can be induced by CCL5 and TGF-β1, respectively.24,25 Based on those studies, we examined CCL5 and TGF-β1 expression in Igf2bp3_wt and Igf2bp3_ko cells (Fig. 4A–C). The results showed that the expression and secretion of CCL5 and TGF-β1 were lower in Igf2bp3_ko cells than in Igf2bp3_wt cells. The results of ELISA and immunohistochemical staining of the tumor tissue were consistent (Fig. 4D–E). We next investigated whether IGF2BP3 regulated the infiltration of macrophages through CCL5. Transwell assays detected the migration of macrophages stimulated by supernatants from Igf2bp3_wt cells, Igf2bp3_ko cells, Igf2bp3_ko cells with added CCL5, CCL5 only and supernatants from Igf2bp3_wt cells with added anti-CCL5, Igf2bp3_wt cells with added IgG. Consistent with previous finding, the number of migrating cells induced by supernatant from Igf2bp3_ko cells was reduced compared with the Igf2bp3_wt group. Adding CCL5 to the supernatant of Igf2bp3_ko cells increased cell migration (p<0.001; Fig. 4F). However, blockade of CCL5 by anti-CCL5 antibody in the supernatant of Igf2bp3_wt cells attenuated the migration induced by the supernatant of Igf2bp3_wt cells (p<0.001; Fig. 4G). The results suggest that tumor-cell derived IGF2BP3 promoted recruitment of macrophages by promoting the secretion of CCL5. To investigate whether IGF2BP3 promoted M2 polarization through TGF-β1, supernatants of Igf2bp3_wt cells, Igf2bp3_ko cells, Igf2bp3_wt cells with anti-TGF-β1, and Igf2bp3_wt cells with IgG were added to Raw264.7 cell cultures. Macrophages were collected after 48 h and markers, including Nos2, IL6, H2-Ab1, Tnf-α (M1), Arg1, IL10, and Ym1 (M2) were detected by qRT-PCR. As shown in Figure 4H, when the Igf2bp3_wt group was treated with TGF-β1 neutralizing antibody, the expression of M2 macrophage markers, Arg1 (p<0.01), Il-10 (p<0.01), and Ym1 (p<0.001) were significantly decreased compared with the Igf2bp3_wt group. The findings suggest that IGF2BP3 facilitated macrophage infiltration and M2-polarization by promoting the secretion of CCL5 and TGF-β1 by tumor cells.
IGF2BP3 inhibits the activation of CD8+ T cells by promoting the secretion of TGF-β1
The TGF-β signaling pathway is known to have a critical role in inhibiting CD8+ T cytotoxicity.26 Therefore, we downloaded and analyzed the transcriptome data of HCC patients from the TCGA database and found that IGF2BP3 was positively correlated with immunosuppressive factors of tumor cells and factors of exhausted T-cell phenotypes (Fig. 5A). Thus, we hypothesized that IGF2BP3 in tumors may inhibit the activation of CD8+ T cells by promoting TGF-β1 expression. To test the hypothesis, splenocytes of Hepa1-6 tumor-bearing mice were isolated 18 days after inoculation of tumor cells. After coculture with tumor cells for 48 h, the proportion of CD3+ T and CD8+ T cells in the Igf2bp3_ko tumor cell group was found to be higher than that in the Igf2bp3_wt group (p<0.01; Fig. 5B). Moreover, granzyme B and IFN-γ secreted by CD8+ T cells was significantly increased in the Igf2bp3_ko group (p<0.01; Fig. 5C), indicating that tumor cell-derived IGF2BP3 inhibited the activation of CD8+ T cells. Furthermore, we sorted CD8+ T cells and cocultured them with Igf2bp3_wt or Igf2bp3_ko cells after activation by anti-CD3 and anti-CD28 (Fig. 5D). The CD8+ T/tumor cell ratios were 1:1, 2:1, 4:1, 5:1, 8:1, or 10:1. Increased 7AAD+ tumor cells were detected in Igf2bp3_ko group in all experimental settings (Fig. 5C–E). In addition, both granzyme B (p<0.01) and IFN-γ (p<0.01) generated by CD8+ T cells were increased in the group cocultured with Igf2bp3_ko cells compared with the Igf2bp3_wt group (Fig. 5F). When TGF-β1 neutralizing antibody was added into the Igf2bp3_wt group, the levels of granzyme B (p<0.05) and IFN-γ (p<0.01) secreted by CD8+ T cells were elevated compared with the Igf2bp3_wt group (Fig. 5F). Collectively, the findings suggest that IGF2BP3 inhibited activation of CD8+ T cells by promoting the secretion of TGF-β1.
IGF2BP3 directly binds to the mRNA of Ccl5 or Tgf-β1

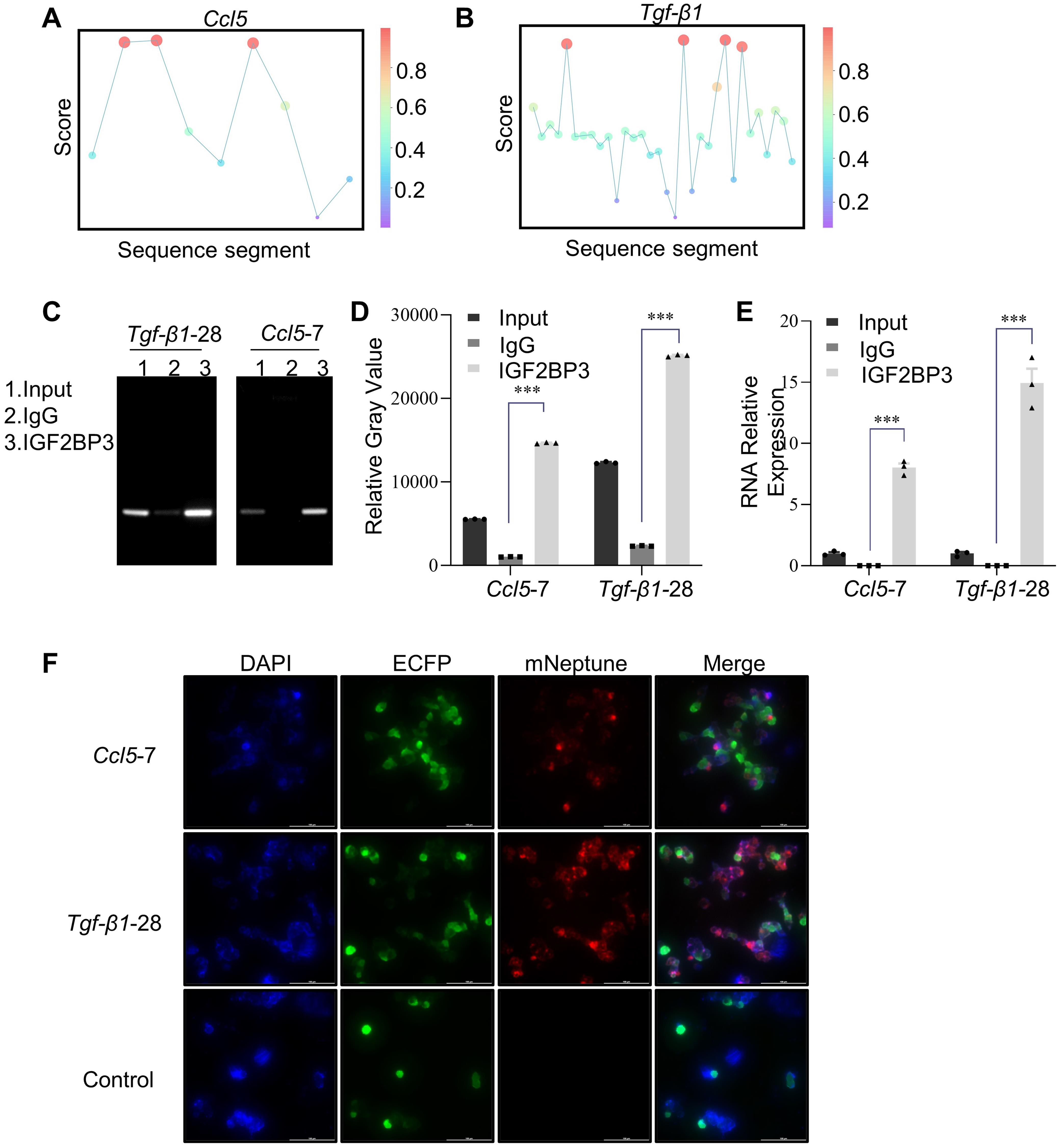

As IGF2BP3 is an RNA binding protein (RBP), we sought to investigate whether IGF2PB3 directly binds with Ccl5 or Tgf-β1 mRNA. We used the website RBP suite database (http://www.csbio.sjtu.edu.cn/bioinf/RBPsuite/ ), which can predict RBP binding site in RNA. All the predicted binding sites are shown in Figure 6A–B. Supplementary Table 2 shows the sequences of which score was greater than 0.5. RIP-PCR assays found two sequences, Ccl5-7 and Tgf-β1-28, were enriched in IGF2BP3 immunoprecipitated products (Fig. 6C and Supplementary Fig. 2A–B), which was confirmed by analysis of relative gray values (p<0.001; Fig. 6D). Enrichment of the two fragments (Ccl5-7 and Tgf-β1-28) were also validated by qRT-PCR (p<0.001; Fig. 6E). mNeptune-based TriFC is a system used to monitor mRNA and protein interactions.23 If the candidate RBP interacts with the RNA sequence of interest, re-association of the two mNeptune fragments produces a red TriFC signal. pECFP-C1-MS2-Ccl5-7, pECFP-C1-MS2-Tgf-β1-28, and pECFP-C1-ms2 (control) were transfected into 293T cells with pIgf2bp3-MN155 and pMC 156-MCP plasmids. We observed significant red TriFC fluorescence signals in 293T cells transfected with pECFP-C1-MS2-Ccl5-7 or pECFP-C1-MS2-Tgf-β1-28 compared with the control group (Fig. 6F). Collectively, the findings strongly indicate that IGF2BP3 directly bound to the mRNA of Ccl5 or Tgf-β1.
Combination of Igf2bp3 knockout and CD47 blockade has synergistic antitumorigenic effects in mouse HCC model
CD47 neutralizing antibodies have been used to enhance phagocytosis, a key function of macrophages, for HCC treatment.27 Hence, we hypothesized that the combined approach of Igf2bp3 knockout and CD47 neutralizing antibody would not only accelerate macrophage phagocytosis, but also hinder M2-polarization and elicit better activation of CD8+ T cell. The results demonstrated that knockout of Igf2bp3 combined with anti-CD47 therapy led to significantly slower tumor growth (Fig. 7A). Both the final tumor volume and weight were smallest in the combination treatment group (Fig. 7B–C). The findings strongly suggest synergistic antitumorigenicity of Igf2bp3 inhibition and blockade of CD47. Overall, our study demonstrates that IGF2BP3 facilitated the infiltration and M2-polarization of macrophages and inhibited CD8+ T-cell activation. The activity was the result of the binding of IGF2BP3 to RNA fragments of Ccl5 and Tgf-β1, leading to an increased secretion of CCL5 and TGF-β1 (Fig. 7D).
Discussion

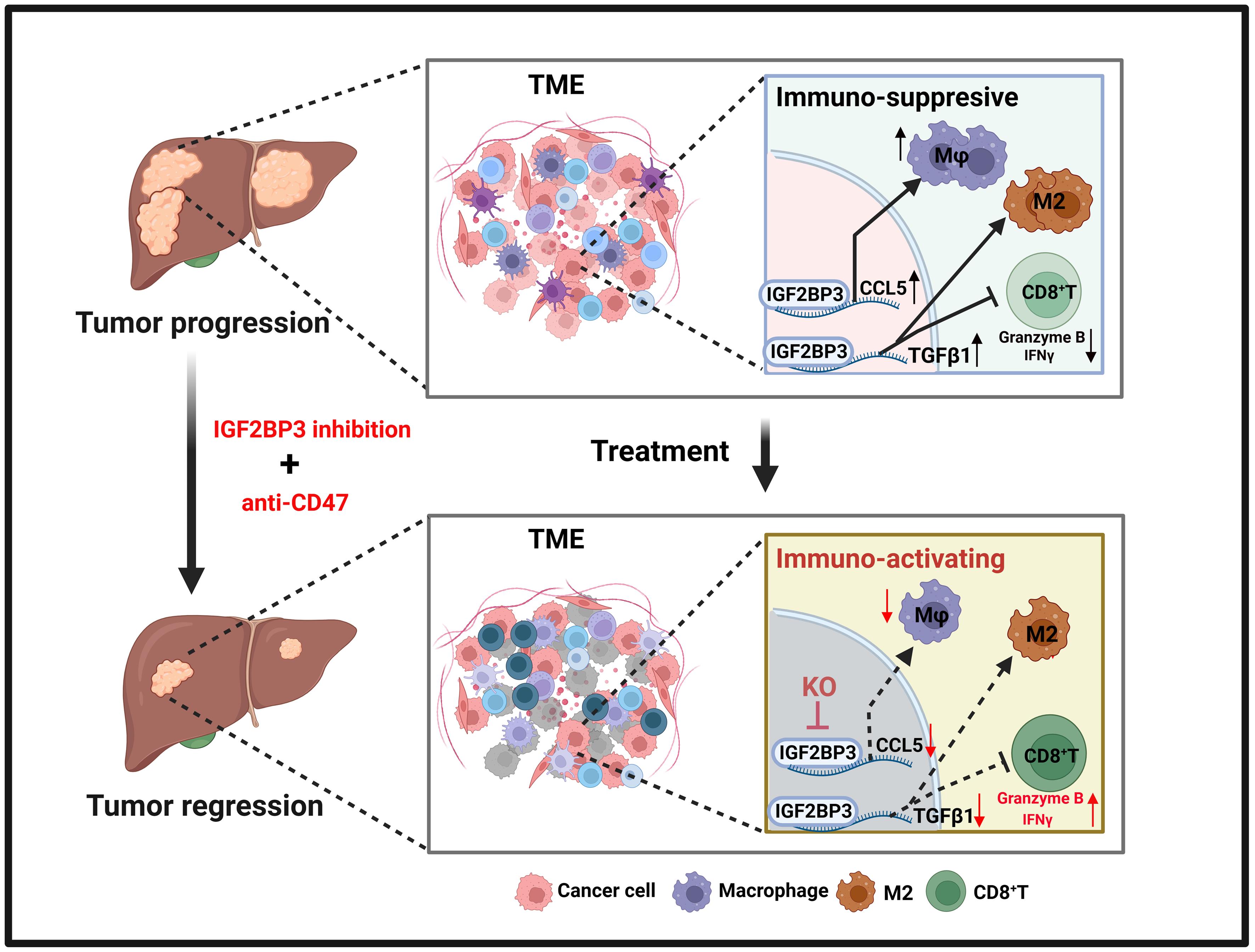

There were three main study findings: (1) IGF2BP3 was found to promote infiltration of macrophages by up-regulating CCL5; (2) IGF2BP3 induced M2 polarization of macrophages and inhibited CD8+ T-cell activation by increasing the expression of TGF-β1; (3) IGF2BP3 was found to directly bind to Ccl5 or Tgf-β1 mRNA. The CCL5/CCR5 axis has been shown to be intricately involved in cancer progression through various mechanisms such as by promoting tumor growth and invasiveness, remodeling of the extracellular matrix, expansion of cancer stem cells, resistance to drugs, angiogenesis, and polarization of immunosuppressive macrophage.28 Blocking this axis with anti-CCR5 induced repolarization of macrophages with antitumor effects.29 In an EGFRL858R-induced mouse lung cancer model, inhibition of TP53 enhanced the polarization of M2 macrophages by increasing the expression of CCL5.30 CCL5 is also known to stimulate macrophage migration and recruitment.24 Oncolytic virus expressing fusion protein of cetuximab and CCL5 enhanced the migration and activation of immune cells including macrophages, which improved the therapeutic effect against solid tumors.31 In our study, IGF2BP3 was found to promote CCL5 secretion by binding to Ccl5 mRNA, thereby inducing macrophage infiltration of the tumor.
TGFβ signaling is one of the canonical pathways whose abnormality drives carcinogenesis.32 It was shown to be an important factor in the induction of epithelial-mesenchymal transition.33 It was also shown to facilitate cancer progression by promoting immunosuppression and inducing M2 polarization.34–36 Inhibitor or antibody against TGFβ showed promising antitumor activities.37 Our results also indicated that IGF2BP3 promoted TGF-β1 secretion in tumor cells, which polarized macrophages toward M2 phenotype. Thus, to the best of our knowledge, this is the first study to identify that IGF2BP3 acts on both macrophages and CD8+ T cells by binding to CCL5 and TGF-β1 in the immune microenvironment of HCC mouse model. Given the broad role of CCL5 and TGF-β1, other functions of IGF2BP3 in HCC immune microenvironment remain to be further explored.
As an RBP, IGF2BP3 has been widely shown to promote the malignant phenotype of tumor cells, but its effects on immune cells are not well characterized in the contemporary literature. A study at the pan-cancer level found that IGF2BP3 may be related to macrophage infiltration of tumors.38 In a study investigating spontaneous abortion, IGF2BP3 was found to promote M2 polarization of macrophages.39 IGF2BP3 facilitated immune evasion of cancerous cells by downregulating the NKG2D ligand ULBP2 in a direct manner.40 The findings suggested the ability of IGF2BP3 to influence the immune microenvironment. In this study, we investigated the impact of IGF2BP3 on the immune microenvironment of HCC and found that IGF2BP3 promoted the infiltration and M2 polarization of macrophages and inhibited the activation of CD8+ T cells. In previous studies, IGF2BP3 in HCC mainly promoted various malignant phenotypes of the tumor cell itself.41 Our study extends the role of IGF2BP3 to regulating the functions of immune cells, providing a theoretical basis for the subsequent exploration of IGF2BP3 in the immune microenvironment and providing new insights for the development of immunotherapy for HCC.
As for the molecular mechanisms, it has been reported that IGF2BP3 has an important role in tumor development by regulating mRNA stability.42 In colorectal cancer, IGF2BP3 was shown to enhance the expression of MEKK1 by stabilizing the mRNA by directly binding its 3′-UTR, activating the MEK1/ERK signaling pathway.43 In addition to promoting RNA stability, IGF2BP3 also reduces the stability of certain RNAs. For example, IGF2BP3 binds to EIF4E-BP2 mRNA leading to its degradation, thereby promoting EIF4E-mediated translational activation.44 In our study, IGF2BP3 was found to directly bind to the mRNA of Ccl5 and Tgf-β1. The regulatory mechanism by which IGF2BP3 affects the secretion of both molecules after binding to their mRNAs is a focus of our subsequent studies. Our preliminary results suggested that IGF2BP3 enhanced the translation of Ccl5 or Tgf-β1, ultimately promoting their secretion. However, more experimental evidence is needed to confirm this conclusion.
Immunotherapy has shown promising results in the treatment of HCC. However, despite the success of combination immunotherapies in improving clinical response rates, nearly 70% of patients are unresponsive to such treatments, and the underlying mechanism remains unclear.45 Therefore, investigating the immune microenvironment of HCC is imperative for developing effective treatments. IGF2BP3 is strongly expressed in tumors but weakly expressed in normal tissues, making it a potential therapeutic target.41 Additionally, CD47 expression is upregulated in HCC, and anti-CD47 antibody can induce macrophage mediated phagocytosis.46–48 In our study, IGF2BP3 promoted M2 polarization of macrophages in HCC. Therefore, it is expected that the combination of CD47 neutralizing antibody and IGF2BP3 inhibition may reduce M2 polarization of macrophages and promote macrophage phagocytosis. Our results suggest that IGF2BP3 inhibition combined with anti-CD47 antibody improved the therapeutic effectiveness against tumors. Although our combined treatment strategy was effective in the Hepa1-6 xenograft tumor mouse model, further studies are required to determine the effectiveness of this treatment in other models.
