Introduction
Ovarian malignant mixed mullerian tumor (MMMT) or carcinosarcoma is a highly aggressive malignancy and represents 2% of all ovarian cancers.1 The patients generally present in their six to eight decades, with high-stage disease including abdominal metastasis and ascites.2–5 Defined by the presence of biphasic, distinct malignant epithelial and mesenchymal components, the carcinomatous component of ovarian MMMT is commonly high-grade serous but endometrioid and clear cell carcinoma can also be seen. Histologically, the mesenchymal component is subclassified into homologous or heterologous sarcomas depending on whether their normal mesenchymal cell counterparts are intrinsic or extrinsic to the ovarian parenchyma. Frequent homologous sarcomatous components include endometrioid stromal sarcoma, fibrosarcoma and leiomyosarcoma. Heterologous sarcomatous components are chondrosarcoma, rhabdomyosarcoma, osteosarcoma, or liposarcoma, in order of liposarcoma.6 While some studies suggested that the presence of heterologous sarcoma dictates a worse prognosis when compared to MMMT with homologous sarcomatous components,7,8 many other investigations disputed the theory.4,9–14 Different heterologous sarcomatous components may coexist and are intermingled within the same tumor. Sarcomatous differentiation in ovarian MMMT beyond the above possibilities is exceedingly rare. Herein, we report a unique case of ovarian MMMT with poorly differentiated angiosarcoma as its homologous mesenchymal component
Case presentation
Clinical presentation
The patient is a 53-year-old female with a history of malignant melanoma of her right lower leg that was removed in 2008 and showed a Breslow thickness of 4.6 mm with two benign sentinel lymph nodes. The patient then presented to a gastroenterologist in June 2013 following gallbladder surgery. At the time, she complained of changes in bowel function with occasional constipation. These symptoms were initially thought to be due to a gluten allergy; however, testing for celiac disease was negative. A colonoscopy was performed, and two tubular adenomas were removed. Her symptoms waxed and waned, with occasional bouts of severe constipation, and she ultimately underwent a computed tomography scan of the abdomen in June 2014. The scan revealed a 3.6 × 2.5 cm mass in the head of the pancreas, suspicious for primary pancreatic cancer, with an adjacent enlarged lymph node. The patient underwent an endoscopic biopsy of the pancreatic mass, which was diagnosed as pancreatic adenocarcinoma.
A positron emission tomography/computed tomography scan was completed in June 2014, which showed a hypermetabolic pancreatic mass with numerous lesions on the liver and spleen. At the time, focal hypermetabolism of the bilateral adnexa was noted. The patient was started on FOLFIRINOX but had a reaction to irinotecan. She was then switched to FOLFOX and follow up scans in December 2014 showed a decrease in the size of the pancreatic mass, as well as resolution of her liver, splenic, and omental lesions. During this time, the patient was tested for BRCA1 (her mother carries a BRCA1 mutation) and was found to be positive for germline mutation. She was switched to a phase 3 clinical trial with olaparib (vs. placebo) for BRCA1 patients. Follow up scans in May 2015 showed stable disease in the pancreas. She was continued on the olaparib trial but repeat scans in July 2015 showed an increase in size of the pancreatic mass with new/regrowth of hepatic metastasis.
The patient was restarted on FOLFOX in August 2015. However, she had a reaction to oxaliplatin and was switched to abraxane and gemzar in September 2015. Follow up scan in December 2015 showed improvement of the liver metastasis, and her treatment was continued. However, her scan in March 2016 showed increase in size of her pancreatic mass, as well as an enlarged right ovary with a lobular contour measuring 3.2 × 3 cm (previously 1.9 × 1.9 cm). An ultrasound of the right ovary demonstrated both solid and cystic areas. The differential diagnosis included metastatic disease vs. primary ovarian tumor. The patient consulted a gynecological oncologist, and the decision was made to surgically remove the right ovary.
Gross and microscopic findings
The surgically removed 5.5 × 4.5 × 3.1 cm right ovary revealed a 2.5 cm parenchymal hemorrhagic cystic lesion upon sectioning with an attached grossly unremarkable fallopian tube. Microscopically, areas of high-grade serous carcinoma and poorly differentiated angiosarcoma occupied distinct tumor areas (Fig. 1a). The serous carcinoma consisted of solid tumor nests admixed with lace-like to irregular glandular growth patterns (Fig. 1b). The cells showed characteristic uniformly high-grade cytology for serous carcinoma, including high nuclear grade with scattered giant tumor cells, prominent macronucleoli, and brisk mitotic activity with frequent abnormal mitotic figures. The sarcomatous component consisted of a spindle cell proliferation in relatively solid nodules of flat to cuboidal cells with markedly atypical nuclei and inconspicuous cytoplasm, lining anastomosing sinusoids with entrapped red blood cells (Fig. 1c and d). Extensive tumor necrosis and hemorrhage were present in both tumor components. Immunohistochemically, the serous carcinoma component was strongly and diffusely positive for CK7 and focally positive for PAX8, but CK20 and P16 were negative and WT1 showed cytoplasmic staining only. The angiosarcoma component was diffusely positive for CD31 and Factor VIII antigen (Fig. 2), but was negative for S100, SOX10, CK7, and CK AE1/AE3. Aberrant diffuse nuclear staining of p53 was present in both the high-grade serous carcinoma and angiosarcoma components.
Metastatic tumor was found only in the contralateral ovary with nodules of pure angiosarcomatous proliferation (Fig. 1d).
KRAS mutation analysis

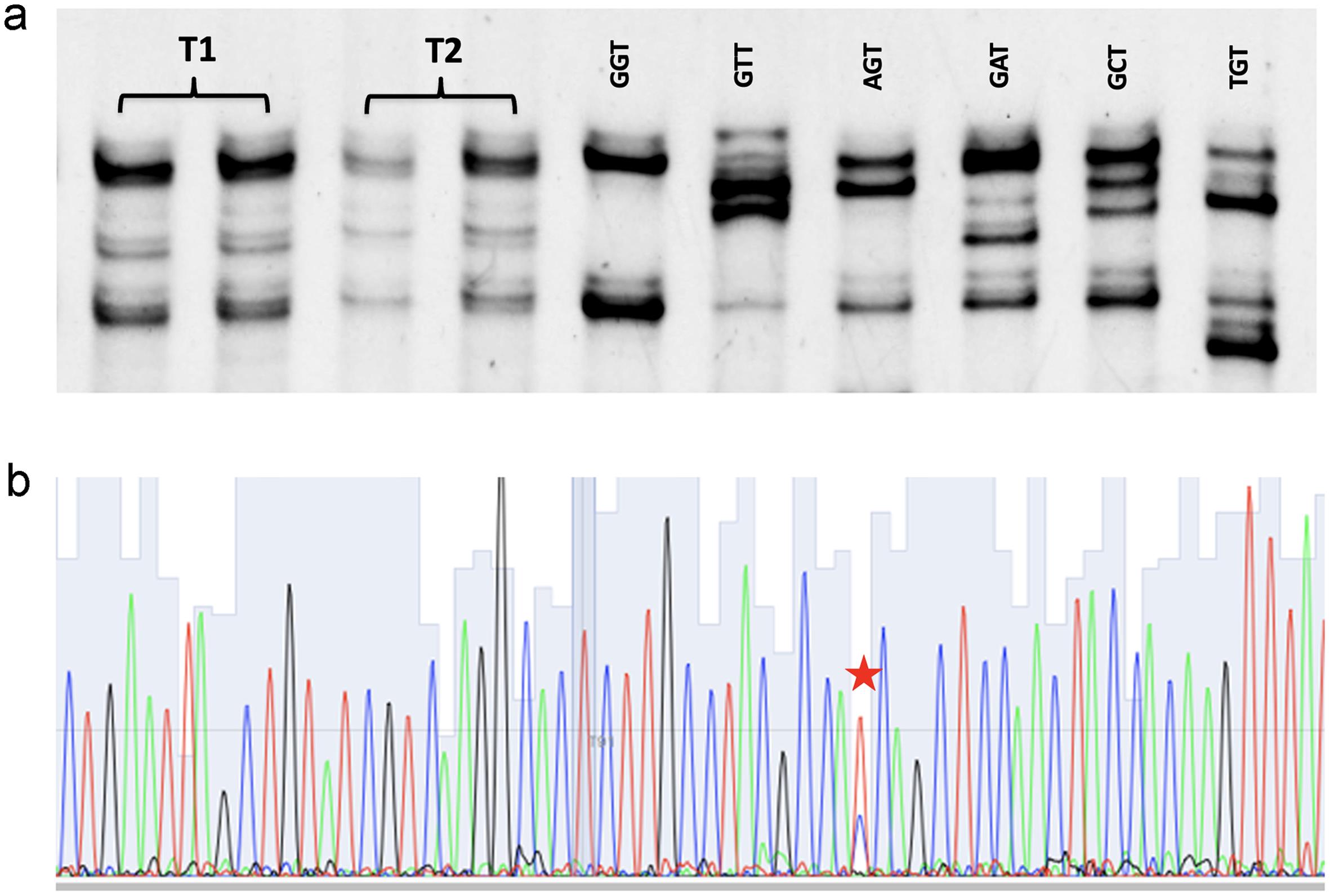

KRAS mutation analysis was performed by polymerase chain reaction-single strand conformational polymorphism (PCR-SSCP) as previously described.15 Formalin-fixed, paraffin-embedded blocks containing distinct areas of serous carcinoma and angiosarcoma were selected. One hematoxylin and eosin (H&E)-stained section and 10 unstained sections were created on glass slides. Upon reviewing the HE stained section, the corresponding tissues from the unstained slides were scraped with a sterile scalpel into separate microcentrifuge tubes. DNA was extracted by hydrothermal pressure method of simultaneous deparaffinization and lysis of formalin-fixed paraffin embedded tissue followed by conventional column purification to obtain high quality DNA.16 Exon 2 of the KRAS gene was amplified by PCR using flanking primers: forward 5′-GACTGAATATAAACTTGTGG-3′ and reverse 5′-CTGTATCAAAGAATGGTCCT-3′ in a 50 µl PCR reaction solution containing 1x PCR buffer, 0.1 mM dNTP, 1.5 mM MgCl2 and 2.5 units of AmpliTaq Gold DNA polymerase. PCR started with initial denaturation at 95°C for 8 minutes, followed by 35 cycles of denaturation at 94°C for 1 minute, annealing at 55°C for 1 minute and synthesis at 72°C for 2 minutes, and finished by a final extension at 72°C for 10 minutes (ABI Veriti Thermal Cycler, Applied Biosystems, Foster City, CA). The PCR product was analyzed by SSCP using 4 µL of the PCR product on non-denaturing gel. Electrophoresis was carried out on ice for 2 hours and 45 minutes at 325 volts. The SSCP gel was then stained with SYBR Gold (Molecular Probes) 1:10,000 in TE added for 20 minutes and imaged by Biorad GelDoc UV System (BioRad, Hercules, CA). The presence of KRAS mutation was determined by comparing the SSCP banding patterns with known KRAS mutations as positive controls. An abnormal SSCP banding pattern compatible with that of guanine-adenine-thymine (GAT) codon 12 mutation was detected in both serous carcinomatous and angiosarcomatous components (Fig. 3a). Due to the SSCP banding pattern of codon 12 GAT mutation overlapping with that of codon 13 GAC mutation, the abnormal bands were cut out of the SSCP gel followed by Sanger sequencing in both forward and reverse directions using the PCR primers, which revealed a heterozygous GAT mutation at codon 12 of KRAS (Fig. 3b).
Discussion
We report the first case of a primary ovarian MMMT with angiosarcoma as its homologous sarcomatous component. The angiosarcomatous component consisted of distinct nodules of solid to sinusoidal proliferation of poorly differentiated spindle cells. The lack of cytokeratin immunostaining (CK7 and CK AE1/AE3) and diffuse CD31 and Factor VIII expression confirmed the endothelial cell differentiation. Defined at the histological level by the presence of disparate epithelial and mesenchymal malignant tissue types, MMMT is subclassified according to its sarcomatous histology into homologous and heterologous. Frequent homologous sarcomatous components include endometrioid stromal sarcoma, fibrosarcoma and leiomyosarcoma. Heterologous sarcomatous components are chondrosarcoma, rhabdomyosarcoma, osteosarcoma or liposarcoma, in their order of frequency. Angiosarcomatous differentiation in uterine or ovarian MMMT has not been reported. One case study of a fallopian tube primary MMMT in a 57-year-old patient showed a FIGO stage I tumor that harbored foci of well-differentiated angiosarcomatous component among multiple heterologous sarcomatous nodules including chondrosarcoma, osteosarcoma, and myxoid liposarcoma. Conventional endometrioid carcinoma was the epithelial component in this reported case.17 To our knowledge, angiosarcoma has not been reported as a sarcomatous component in either uterine or ovarian primary MMMT.
Despite multiple histological, immunohistochemical and molecular genetic investigations of MMMT arising in the female genital tract, the pathogenesis of the tumor continuous under continued debate in the literature. A plethora of variation of both carcinomatous and sarcomatous histological types in various combinations likely render significant difficulties in the exploration of the pathogenesis of MMMTs. Several lines of investigations have found that most uterine and ovarian MMMTs are clonally evolved, suggesting metaplastic conversion of carcinoma into sarcomatous differentiation via epithelial-mesenchymal transition mechanisms.18–20 Identical p53 mutations detected in the primary ovarian carcinoma and the subsequent MMMT supports this hypothesis.21,22 The presence of diffuse strong p53 immunostaining in both the serous carcinoma and angiosarcomatous components and identical KRAS mutations detectable in both components in our case further support the clonal evolution theory of MMMT as a metaplastic carcinoma.
The cellular composition of metastatic lesions of MMMT, including both uterine and ovarian primaries, mostly contain only the carcinomatous component and less commonly admixed carcinomatous and sarcomatous components. Only rarely does the sarcomatous component constitute the sole metastatic lesion.23 The presence of only the angiosarcomatous component without its epithelial counterpart in the contralateral ovary in our case raises the possibility of a collision tumor. However, the intimate admixture of the two tumor components in the primary ovarian tumor, and once again, the presence of abnormal p53 immunohistochemistry and identical KRAS mutations in both the serous carcinoma and angiosarcomatous components, strongly argue for the diagnosis of MMMT, rather than a collision tumor.
Various studies in the literature explored the correlation of clinical prognosis with the nature of sarcomatous components in MMMT. The presence of heterologous sarcomatous components correlated with a significantly worse prognosis,7,8,24,25 and the presence of rhabdomyosarcoma appears to be associated with the worst prognosis.26 However, many other studies failed to support this notion.4,9–14 The presence of sarcomatous component outside the ovary was recently found as a significant adverse prognostic factor.3 The prognostic indication of angiosarcoma component in a MMMT is entirely unknown. Our patient received cytoreduction staging surgery with the tumor involving both ovaries, including the right ovarian surface. Post operatively, the patient received three cycles of carboplatinum and Taxol. Follow up scans showed an increase in size of her liver lesion in September 2016, and the patient died of wide-spread metastatic disease 6 weeks later. Autopsy was not performed.
It should be noted that our patient was a germline BRCA1 mutation carrier and developed three malignancies over time, including skin melanoma, pancreatic adenocarcinoma and finally ovarian MMMT. MMMTs occur in BRCA1 mutation carriers with TP53 loss of function mutation, which is a genetic alteration known to occur in BRCA-linked ovarian tumorigenesis.22 However, such association has been limited to single case reports, including the current case study. In addition to breast and ovarian cancers, patients with germline BRCA1 mutations also have increased risks for pancreatic carcinoma.27 However, patients with BRCA2, not BRCA1 mutation, have been found to have increased risk for skin melanoma.28
Conclusions
This is the first report of a postmenopausal patient with germline BRCA1 mutation who developed a primary ovarian MMMT with poorly differentiated angiosarcoma as its homologous sarcomatous component. The presence of abnormal p53 immunohistochemical profile and identical KRAS mutations in both the high-grade serous carcinoma and angiosarcoma components support malignant epithelial-mesenchymal transition as a possible mechanism in the pathogenesis of MMMT.
Declarations
Ethical statement
This study was performed in accordance with the Declaration of Helsinki (as revised in 2024). This case study does not include an identifiable patient information. According to institutional policy, this report has been exempted from the Institutional Review Board approval.
Funding
No funding was received for the work.
Conflict of interest
Dr. Pei Hui has been an editorial board member of Journal of Clinical and Translational Pathology since May 2021. The other authors have no conflicts of interest to declare.
Authors’ contributions
Data collection, drafting of the manuscript (SW), discussion, editing of the manuscript (NB), molecular data presentation, and finalizing the manuscript (PH). All authors have approved the final version and publication of the manuscript.
