Evolving evidence
Current recommendations advise against extracorporeal therapy for calcium channel blocker (CCB) poisoning.53,54 Amlodipine and several other CCBs, including diltiazem, nifedipine, and verapamil, were considered nondialyzable. A previous report by Roberts et al.55 specifically reviewed a case of diltiazem overdose treated with a single three-hour cycle of hemoadsorption. They found no clinical improvement during or immediately after hemoadsorption using a coated charcoal filter. Charcoal is effective for certain endogenous substances, such as urate and creatinine, but it is nonspecific and, when coated, may limit its effectiveness.31,56 Diltiazem and amlodipine are significantly protein-bound, lipophilic, and have a large volume of distribution (>1 L/kg). A single application of hemoadsorption with charcoal is therefore unlikely to remove significant amounts of these drugs, as they are likely to have been distributed outside the intravascular compartment into tissue (time dependent), limiting drug clearance beyond the vascular space.34

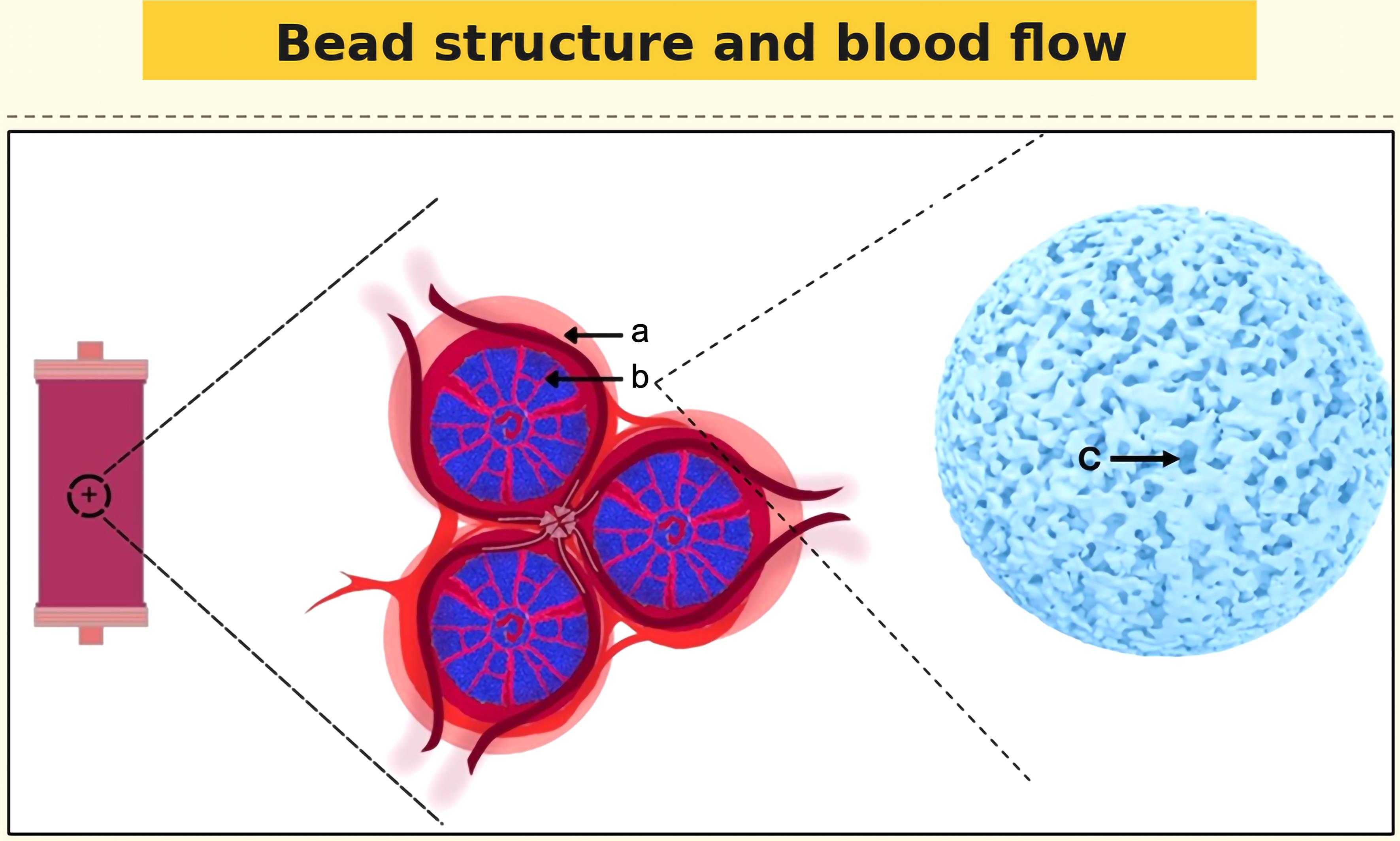

A different strategy utilizing modern resin hemoadsorption cartridges may provide a solution for lipophilic drugs. Polymer adsorbent resins are nonpolar (neutral) and can adsorb lipophilic substances. These neutral microporous adsorbent resins rely on a three-dimensional molecular sieve formed by micropores (<2 nm) and mesopores (2−50 nm) within the resin beads.56 Adsorption occurs by van der Waals forces, and these resins have a high adsorptive capacity for medium- and large-molecular-weight substances with high lipid solubility and protein binding.31Figure 1 illustrates the mechanism of removal using modern resin bead hemoadsorptive technology.
An ex vivo extracorporeal model demonstrated almost 90% removal of amlodipine from the blood compartment within two hours using this technology.57 A case report using the Jafron HA 230 cartridge (resin bead) demonstrated reversal of shock in less than one elimination half-life of amlodipine, with concurrent retention of substantial amounts of amlodipine in the filter.58 In this case report, two six-hour cycles were applied 18 hours apart.
There were likely two important differences between the unsuccessful attempt by Roberts et al.55 to use hemoadsorption for a calcium channel blocker overdose and the case report described above. First, charcoal binding is relatively poor, whereas resins are well suited for highly lipophilic and protein-bound substances with superior adsorbent properties. Second, a multicycle approach with an intercycle interval may be prudent, allowing time for the transfer of solutes or toxins from tissue back into the blood. This strategy may be useful because saturation prevents continuous hemoadsorption, thereby inadvertently limiting heparin exposure to six-hour cycles per 24-hour period. Figure 2 describes the proposed approach to successful blood and tissue clearance of drugs and toxins.
Another recent case report using a modern polymer bead-based hemoadsorption system with hemodialysis demonstrated successful clinical use in a case of an amlodipine overdose. Although pharmacokinetic data or surrogate measures of drug removal were not available, the patient recovered fully from multiorgan failure, including acute kidney injury, following the addition of hemoadsorption to standard care.59
A retrospective observational study conducted in a single-center ICU over three years compared hemoadsorption therapy with standard care in 24 patients with CCB poisoning and shock. Thirteen patients received hemoadsorption therapy in addition to standard care, and 11 received standard care according to established guidelines.53 A detailed analysis of changes in hemodynamics, vasopressor doses, other interventions used, and lactate was performed. Baseline details, including demographics, hemodynamic data, lactate levels, and SAPS II scores, were compared between groups. Despite greater initial severity in the hemoadsorption group, with lower blood pressure, higher lactate levels, and more organ dysfunction, this group demonstrated greater improvement in mean arterial pressure during the first 48 hours, a faster peak-to-trough lactate reduction (14 vs. 4 hours), a trend toward shorter high-dose insulin euglycemic therapy (HIET) duration (1 vs. 3 days), and only one death (7.7%).60 This compares favorably with two other observational studies describing the safety of HIET therapy among 7 and 46 patients, respectively, with no control groups.61,62 The mortality rates in these studies were 14% and 20%, respectively. Finally, the safety of modern hemoadsorption therapy with respect to platelet counts, bleeding, and transfusion requirements appears well supported.63

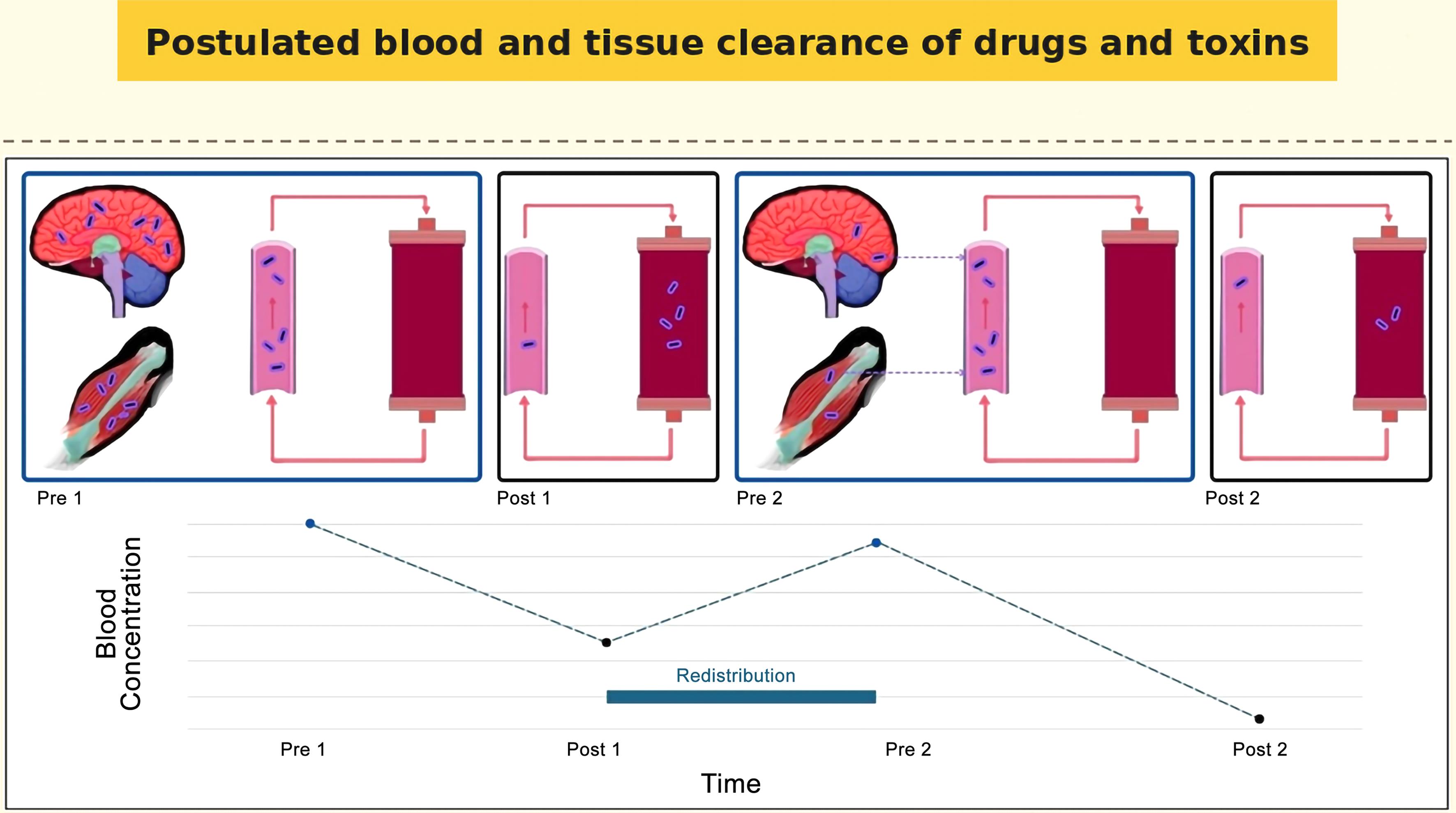

The use of modern resin hemoadsorption may contribute to improved hemodynamic stability, faster resolution of shock, and possibly improved outcomes. The beneficial effects could theoretically be attributed to the faster clearance of CCBs from both the vascular and tissue compartments through the multicycle approach described in Figure 2.63 Given that the recommendation for HIET therapy in CCB overdose is based on animal studies, case series, and two noncomparative retrospective studies evaluating safety, further consideration of hemoadsorption use is warranted, particularly in light of the results of a detailed comparative case-control study that does not currently exist for HIET therapy.
The burden of pesticide self-poisoning has been well documented, and organophosphates represent a major toxin in this group, with Southeast Asia, China, Africa, and South America bearing the brunt of this problem.64 With millions of lives lost over the past few decades, apart from antimuscarinic therapy, there has been surprisingly little progress in the management of this condition, and the potential role of hemoadsorption has received limited attention in the literature. This may be due to the burden of this disease being disproportionately higher in LMIC and the evidence stemming from a limited number of regions.
In 2022, a systematic review and meta-analysis (SRMA) was published, identifying 11 OPP studies, all conducted in China.65 Randomized controlled trials comparing standard care with hemoperfusion and hemofiltration plus standard care were searched for in the following databases: WanFang, Chinese Biomedical Literature, China National Knowledge Infrastructure, Medline, and Cochrane. Eleven studies included 811 patients admitted with acute severe organophosphate poisoning. Eligibility patients were required to have an appropriate history of exposure and cholinesterase activity of less than 30%.
The control group received standard care consisting of the usual decontamination, antimuscarinic therapy, cholinesterase reactivators, and supportive care, including mechanical ventilation. The intervention group received standard care plus hemoperfusion and hemofiltration. The methodological quality of the studies was deemed poor because 5 of the 11 studies did not report randomization, none described concealment, and only one study reported blinding.
Overall mortality was reported in 10 studies (699 patients), and the intervention was associated with reduced mortality (odds ratio 0.38, 95% CI 0.25−0.57). Four studies demonstrated a significant reduction in atropine requirements in the intervention group, while five studies showed a significant reduction in the duration of mechanical ventilation. Finally, 10 studies (745 patients) reported a shorter cholinesterase restoration time in the intervention group.
More recently, a randomized controlled trial comparing hemoadsorption therapy (with 500 mL/h of hemofiltration) with standard care was published.66 This study was completed after publication of the previous meta-analysis and reported both randomization and concealment methods. It was conducted outside China (South Africa) at a single center. Forty patients with severe organophosphate poisoning (cholinesterase levels <200 IU/L, reflecting approximately 5% cholinesterase activity) requiring invasive mechanical ventilation were recruited. The Jafron HA 230 cartridge was used in series with a continuous renal replacement circuit (Primaflex). Two cycles of hemoadsorption, six hours in duration, separated by a 12–18-hour interval, were performed. The primary outcome was a significant reduction in the proportion of patients in the hemoadsorption arm requiring a prolonged ICU stay. The duration and total dose of atropine were significantly lower, as was the duration of mechanical ventilation, in the hemoadsorption group compared with the standard care group. A detailed cost analysis demonstrated substantial financial savings. A reduction in ICU length of stay from a median of 17 (standard care) to 10 days (hemoadsorption) provided evidence of a significant but less immediately apparent advantage—namely, improved ICU bed turnover and increased bed availability. The estimated savings per patient in ICU was just over 7,000 euros. The proportion of patients developing severe complications, including death, cardiac arrest, organ dysfunction, status epilepticus, reintubation, and tracheostomy, was also significantly lower in the hemoadsorption group.
A recent observational study from a single center reported substantial benefits for 75 patients. Forty-one patients receiving hemoadsorption therapy were compared with 34 receiving standard care. The hemoadsorption group had greater disease severity, as demonstrated by a significantly higher severity-of-illness score (SAPS II), higher predicted mortality, and lower Glasgow Coma Scale (GCS) scores. Despite these differences, hemoadsorption was shown to have a protective effect, with the standard care group experiencing significantly more severe complications, including death, cardiac arrest, cerebral herniation, septic shock, acute kidney injury, reintubation, and tracheostomy.67
Finally, we found 10 non-randomized published studies evaluating hemoadsorption therapy for organophosphate poisoning indexed under PubMed. Table 3 summarizes the main outcomes of these studies.24,68–76
Table 3Published studies on hemoadsorption for organophosphate poisoning (PubMed)24,68–76
| Reference | Nonrandomized study design | n (HA vs. SC) | Cartridge | Outcomes (HA vs. SC) |
|---|
| Dong et al.68 | Prospective observational | 34 vs. 34 | HA230 | Mortality 3% vs. 17%; LOS days 11 vs. 18; MV days 2.3 vs. 7.4; Atropine mg 119 vs. 485 |
| Bo et al.69 | Unavailable | 20 (HA 3 cycles) vs. 16 (HA 1 cycle) | HA230 | IMS 5% vs. 25%; Atropine mg 251 vs. 622 |
| Hu et al.70 | Not stated | 28 (HA + CHF) vs. 28 (HA + SLEDD) | HA230 | Mortality 7% vs. 4.5% |
| Liang et al.71 | Not stated | 31 vs. 30 | HA330 | Mortality 19% vs. 16%; LOS days 7.5 vs. 16.1; MV days 3.8 vs. 6.8 |
| Peng et al.72 | Not stated | 67 vs. 41 | Charcoal | ICU LOS days 4 vs. 6; MV days 5 vs. 8; Atropine mg 568 vs. 1,228; Mortality 7.5% vs. 34% |
| Martinez Cheucos et al.73 | Observational | 10 (no control) | Charcoal | Fat biopsy clearance 0.1%; Mortality 20% |
| Kang et al.74 | Retrospective | 40 vs. 28 | Charcoal | Mortality 20% vs. 18% |
| Gil et al.24 | Retrospective | 67 (no control) | Charcoal | Excess mortality 44%; Complications: thrombocytopenia 31.1%, hemorrhage 3%, hypocalcemia 69.1% |
| Altintop et al.75 | Retrospective | 17 vs. 7 | Charcoal | No comparisons. Severity associated with mortality |
| Guo et al.76 | Retrospective | 49 vs. 49 | Unknown | Mortality 6% vs. 29% |
Overall results from observational data, the randomized controlled trial meta-analysis, and the most recent randomized controlled trial all show benefits with the use of hemoadsorption therapy for acute severe organophosphate poisoning. These include benefits in terms of duration of antidote therapy, decreased need for organ support (mechanical ventilation), shorter hospital stays, fewer severe complications, and lower mortality. Hemoadsorption safety data from the South African randomized trial showed no significant effects on platelet count, bleeding, or transfusion requirements.
Although less well-known, clinical experience (nonrandomized and without control groups) with the use of hemoadsorption for other toxins, including paraquat, mushroom, and snake venom, also exists.56,77–79
A case report involving a snake bite of the fifth finger of the left hand in a 62-year-old patient reported on the use of hemoadsorption with a polystyrene resin (Cytosorb®).79 The snake was identified as belonging to the Montivipera xanthina species. There was a delay in acquiring antivenom, and no response was observed after initial debridement, fasciotomy, antibiotics, tetanus prophylaxis, and other supportive care. Hemoadsorption was subsequently initiated, and a clinical response was noted, both in terms of systemic and local perfusion.
A retrospective study evaluating 58 patients (children and adolescents) with the use of styrene divinyl benzene resin (hemoadsorption) in 26 cases demonstrated that survival depended on the amount of mushroom ingested and early admission and initiation of extracorporeal blood purification therapy.80
A recent case report demonstrated the effectiveness of a modern resin cartridge (HA 230) in removing significant amounts of enalapril (ACE inhibitor). In this case, the patient ingested an unknown quantity of enalapril and three antiretroviral drugs, presented in shock with a lactate of 10 mmol/L, and required large doses of vasoactive agents. Within five hours of completing a six-hour cycle of hemoadsorption, there was a shock reversal with the patient weaned of all vasoactive drugs, and lactate decreased to 1.5 mmol/L. There was an almost 10-fold reduction in detected enalapril concentrations and reductions in the three antiretroviral drugs in the blood samples after adsorption compared to those obtained immediately before. Significant removal of enalapril and all three antiretroviral drugs by Extracorporeal Blood Purification (ECBP) was demonstrated.81

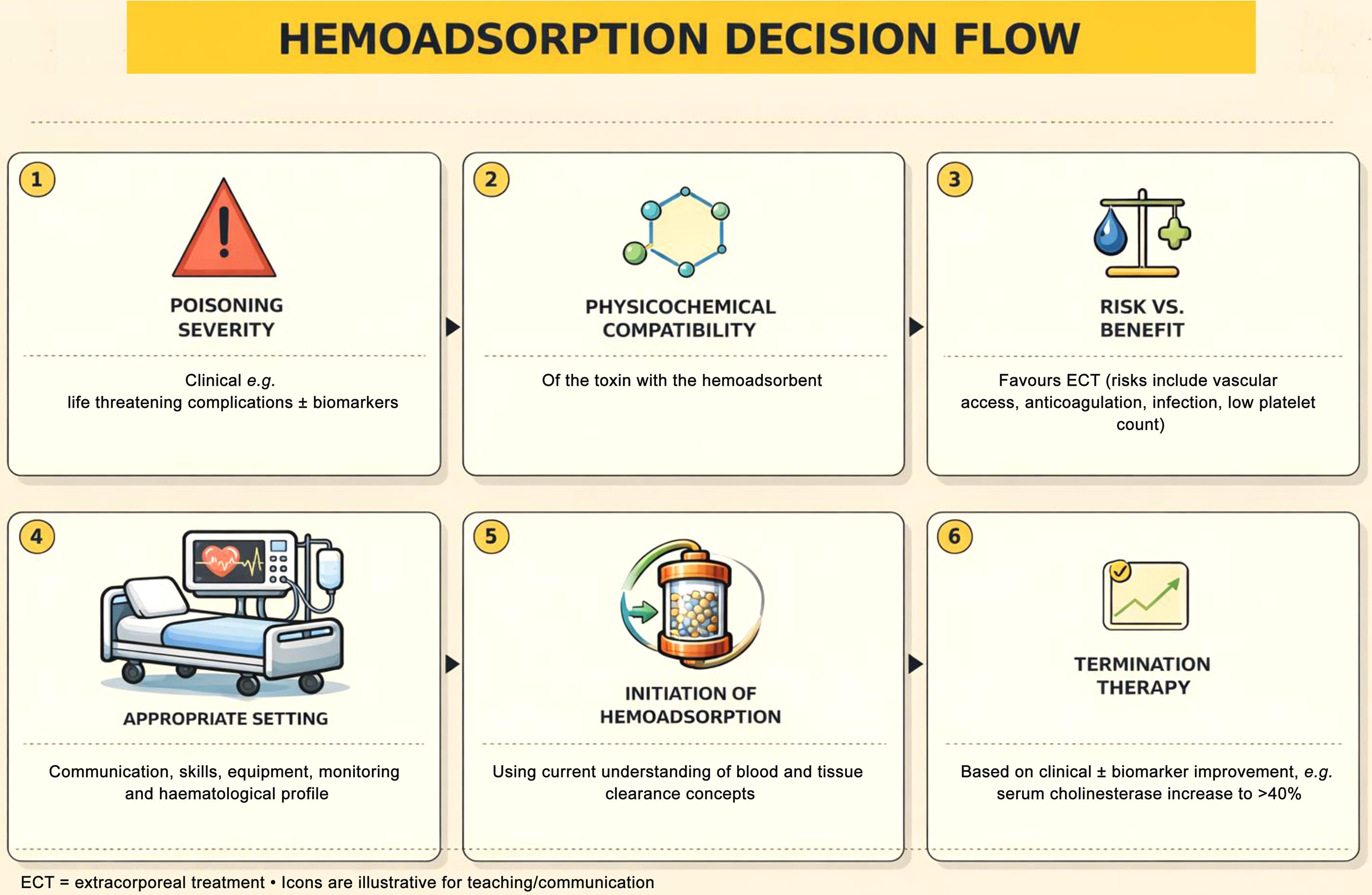

The role of hemoadsorption using modern resin cartridges for various toxins is growing. Despite an increasing number of reports, well-conducted comparative studies are limited, and this situation is unlikely to change given the variety of toxins and the difficulty of accumulating large enough cohorts to conduct randomized trials. A proposed care pathway for the use of hemoadsorption when clinical data are limited or absent is described below.
