Introduction
Mesothelioma is an aggressive neoplasm that develops in the lining of internal organs and body cavities. The mortality rate of mesothelioma is high due to late diagnosis and resistance to treatment.1 Mesothelioma is histologically classified into epithelioid, sarcomatoid, and biphasic types.2,3 Epithelioid mesothelioma (EM) is characterized by polygonal, oval, or cuboidal cells with growth patterns that include tubulopapillary, trabecular, micropapillary, and solid, although less common patterns, such as adenomatoid, can also occur.4,5 The pathological diagnosis of mesothelioma is based on histomorphological features and immunohistochemical (IHC) staining, which can be challenging when tissue samples are limited. It is recommended that IHC workups include at least two mesothelial markers, in addition to markers for epithelial neoplasms, particularly for lung adenocarcinoma. The general recommendation is to select mesothelial markers with specificity and sensitivity greater than 80%.2,4 Currently, the commonly used markers to aid in the diagnosis of mesothelioma include calretinin, cytokeratin 5/6 (CK5/6), Wilms’ tumor 1 (WT1) and podoplanin (D2-40). However, the sensitivity and specificity of these markers vary in the diagnosis of mesothelioma from its histological mimickers.2 Although recent identification of molecular targets in mesothelioma, such as breast cancer gene (BRCA1) -associated protein 1 (60.0% sensitivity), methylthioadenosine phosphorylase (42.2% sensitivity), and merlin/nuclear factor 2 (NF2), has improved diagnostic accuracy in effusion specimens, particularly for confirming EM,6–8 most pathology labs have not yet adopted these new antibodies. Moreover, studies have shown that mesothelioma exhibits molecular diversity.9 Consequently, immunostaining for these markers can be time-consuming, and a negative result does not rule out a diagnosis of mesothelioma. Additional markers are needed to enhance diagnostic sensitivity for mesothelioma.10
Carbonic anhydrases are a group of ubiquitous, zinc-containing metalloenzymes that catalyze the reversible hydration of carbon dioxide.11 Carbonic anhydrase IX (CAIX) is one of the isoforms of carbonic anhydrases found on cell membranes and has been shown to play a critical role in tumor progression.12,13 CAIX is expressed at low levels in most normal tissues,14 but it is overexpressed in various solid or hypoxic tumors,15 the most common being clear cell renal cell carcinoma. Previous studies have demonstrated that high CAIX expression in tumor cells is associated with poor response to chemotherapy, increased lymph node involvement, and distant metastasis in patients with head and neck squamous cell carcinoma (SCC).16 In addition, CAIX has been reported as an independent marker for poor prognosis in patients with breast cancer and resectable hepatocellular carcinoma.17–19 Consequently, CAIX inhibitors have recently been considered for targeted therapies in cancer treatment.20,21 Recent studies have observed that CAIX is expressed in both mesothelioma and benign mesothelial cells.22–24 In our routine IHC workup for tumors of unknown origin, we found strong membrane staining of CAIX in pleural mesothelioma. However, the sensitivity and specificity of CAIX expression in diagnosing malignant mesothelioma and its differential diagnosis from histological mimickers are not well-evaluated. In this study, we conducted a large-scale investigation on pleural mesothelioma and non-small cell lung carcinoma (NSCLC) using tissue microarray (TMA) and IHC to examine the sensitivity and specificity of CAIX expression in these tumors.
Materials and methods
Case selection and TMA construction
A group of 56 pleural mesothelioma cases, which did not overlap with the six cases in our pilot study, and 82 cases of NSCLC were prospectively collected over an 11-year period from 1993 to 2013 in the Department of Pathology at Roswell Park Comprehensive Cancer Institute, Buffalo, New York. Three punch cores from each case, as well as benign tissue from various organs, were used to assemble the TMA. The pleural mesothelioma TMA included 38 epithelioid-type, 16 sarcomatoid-type, and two desmoplastic-type cases. The NSCLC TMA was composed of 82 cases, including 42 adenocarcinomas, 37 SCC, two large cell lung carcinomas, and one pleomorphic carcinoma. For both TMAs, the patient’s gender, age, tumor grade, and location were recorded. All protocols for this study were approved by the Institutional Review Board at Roswell Park Comprehensive Cancer Center (Buffalo, NY).
IHC stains
TMA blocks were cut at 4 µm, placed on charged slides, and dried at 60°C for one hour. Slides were cooled to room temperature and added to the Dako Omnis autostainer, where they were deparaffinized with Clearify (American Mastertech; catalog #CACLEGAL) and rinsed in water. Flex TRS High (Dako; catalog #GV804) was used for target retrieval for 30 m. Slides were incubated with CAIX (rabbit polyclonal IgG, Santa Cruz #sc-25599) for 30 m at 1/50 (4 µg/mL IgG). Rabbit Linker (Dako #GV809) was applied for 10 m, followed by horseradish peroxidase (HRP) for 20 m (Dako #GV823). DAB (Diaminobenzidine) (Dako; catalog #K3468) was applied for 5 m for visualization. Slides were counterstained with Hematoxylin for 8 m and then placed into water. After removal from the Omnis, the slides were dehydrated, cleared, and coverslipped. TMA sections from both mesothelioma and NSCLC were subjected to hematoxylin and eosin (H&E) staining for confirmation of tumor presence and histological type.
IHC scoring and statistical analysis
Membranous staining of CAIX was considered positive expression in tumor cells, while cytoplasmic expression of CAIX in both tumor and stromal cells was considered negative (background) staining. The IHC scores were evaluated independently by two pathologists (ZL and TZ). The membranous staining intensity of CAIX (ranging from zero to three points) and the distribution (diffuse, patchy, or scant) of positive tumor cells were recorded. Diffuse CAIX expression was defined as membranous staining in ≥50% of tumor cells (three points), 11–49% as patchy positivity (two points), and <10% as scant positivity (one point). The final score was the product of the staining intensity multiplied by the distribution of membranous-positive tumor cells.
Results
In a routine IHC workup for a tumor of unknown primary, we observed a strong membranous staining pattern of CAIX in pleural mesothelioma (index case). As illustrated in Figure 1, the intensity of IHC staining for CAIX in an EM is as strong as calretinin, one of the most commonly used mesothelial markers (Fig. 1b and d). Additionally, the CAIX reactivity is stronger than that of other mesothelial markers, such as CK5/6, in both intensity and the percentage of positive tumor cells (Fig. 1c). These findings prompted us to further investigate the sensitivity and specificity of CAIX in mesothelioma.

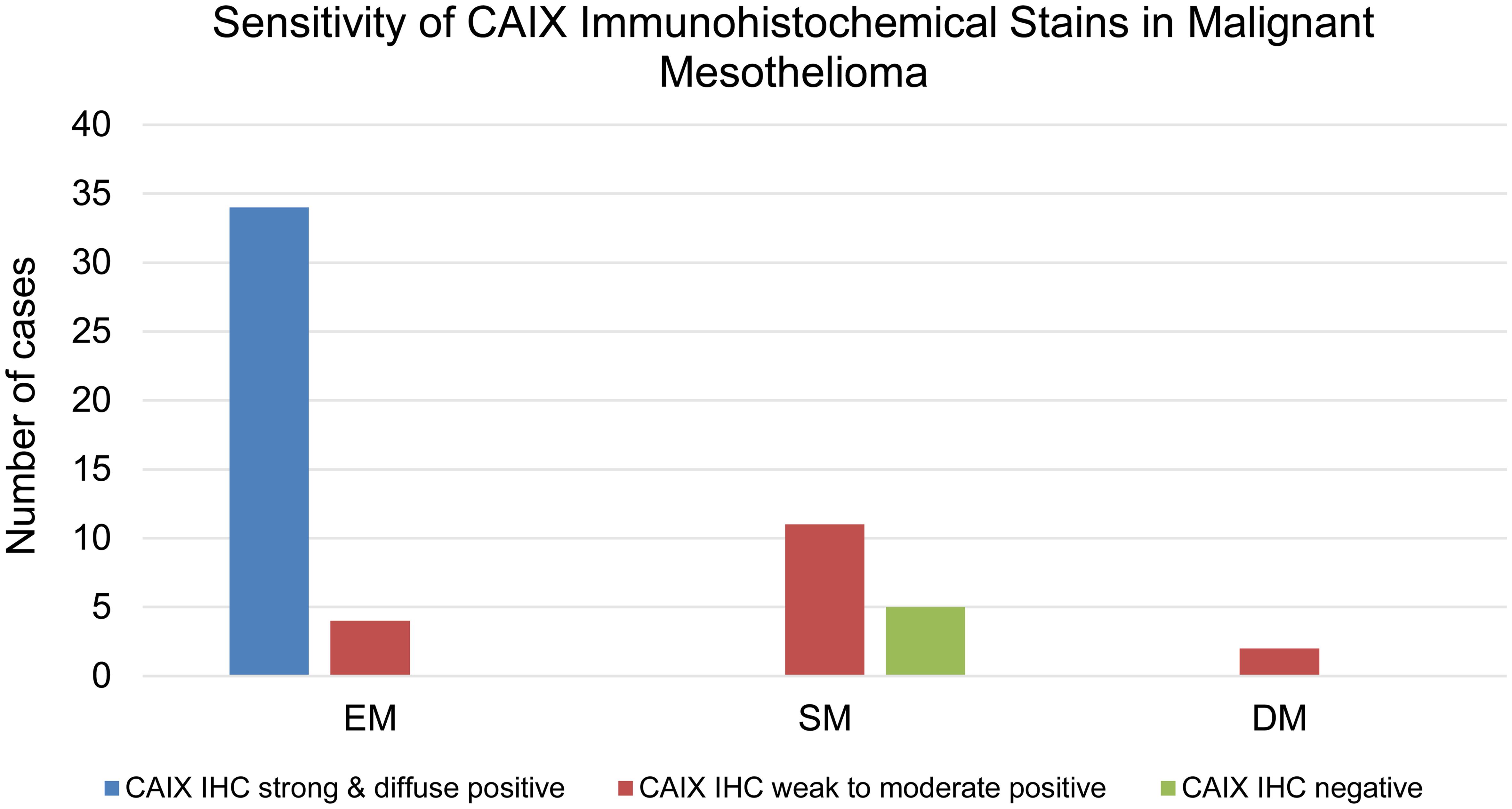

The sensitivity of CAIX expression in mesotheliomas was evaluated on a TMA consisting of 56 mesothelioma cases using IHC staining. This TMA panel included 41 (73%) male and 15 (27%) female patients, with a median age of 66.5 years (range: 36 to 86 years). We found that all 38 cases of EM were positive for CAIX, with 89% (34/38) displaying diffuse and strong reactivity in tumor cells (Fig. 2). Eleven of sixteen (69%) sarcomatoid mesothelioma cases showed patchy, low-to-moderate expression levels of CAIX (Fig. 3). Two desmoplastic mesothelioma cases also showed weak positivity for CAIX (Fig. 2). There was no distinction in terms of expression level and staining patterns between mesothelioma and benign mesothelial cells.

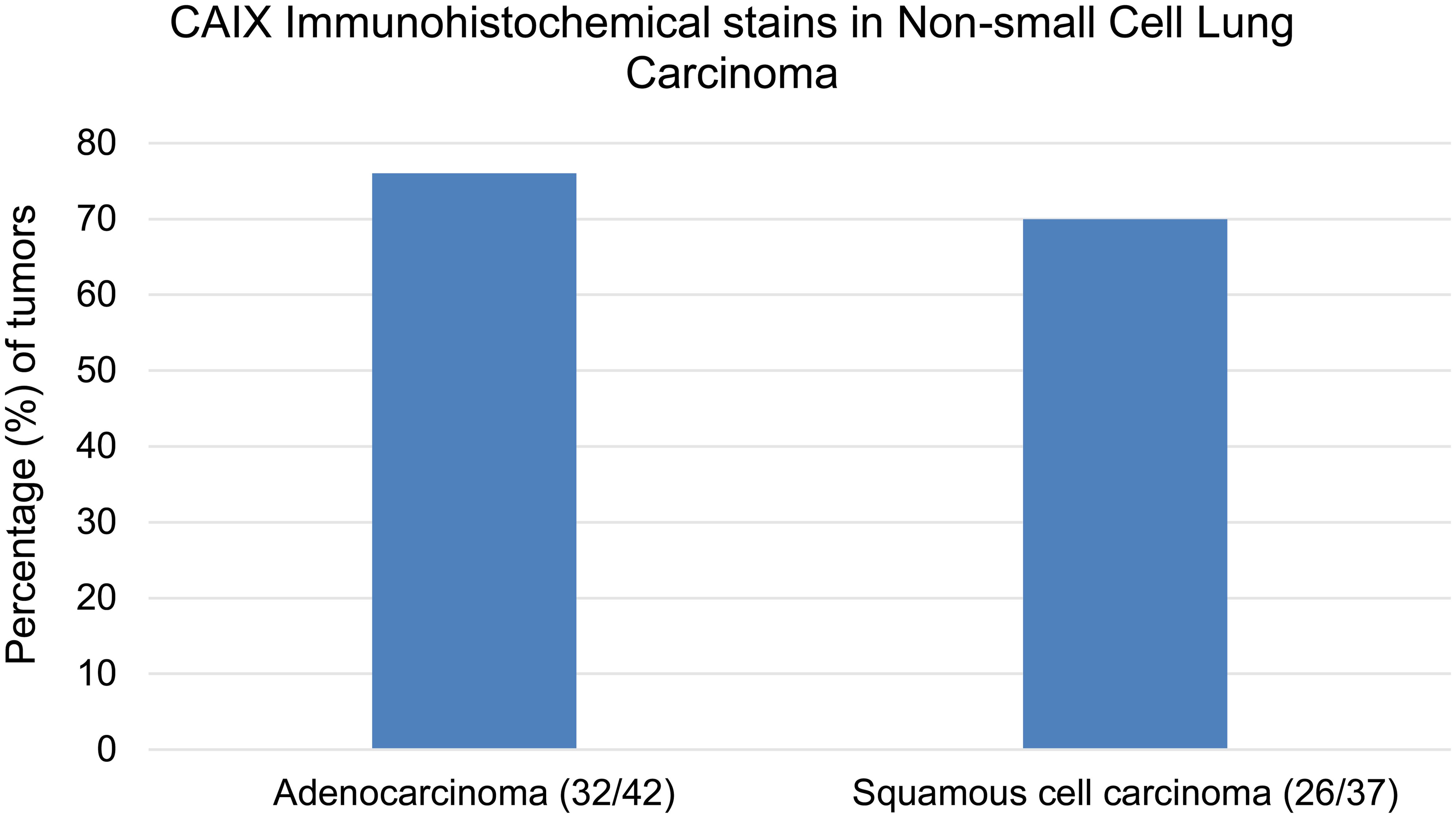

The specificity of CAIX expression was assessed using a TMA comprising 82 NSCLC cases, including 40 (49%) male and 42 (51%) female patients, with a median age of 68 years (range: 16 to 86 years). In lung adenocarcinomas, 76% (32/42) of cases were completely negative for CAIX, while the remaining cases (24%) showed focal, low-to-moderate expression levels of CAIX. In SCC, 70% (26/37) of cases were negative, and 30% (11/37) showed focal weak staining of CAIX (Fig. 4). Large cell lung carcinoma (2/2) and pleomorphic carcinoma (1/1) cases were completely negative for CAIX. Figure 5 illustrates the negative staining of CAIX in one lung adenocarcinoma.
Discussion
The pathologic diagnosis of mesothelioma remains challenging, especially in limited tissue samples such as cytology and small biopsies.2 Current guidelines recommend demonstrating mesothelial origin by including at least two mesothelial markers and two epithelial markers with specificity and sensitivity greater than 80%.2,4 It is well understood that each commonly used mesothelial marker has potential pitfalls in terms of sensitivity and specificity. For example, calretinin is one of the most commonly used IHC markers, with nearly 100% sensitivity. However, its specificity is not as high, as approximately 40% of lung SCCs display at least focal reactivity to calretinin. CK5/6 is another useful mesothelial marker with 75–100% sensitivity, but nearly 100% of lung SCCs are also positive for CK5/6. D2-40 shows 90–100% sensitivity, but 50% of lung SCCs are positive for this marker. While WT1 is almost completely negative in lung SCC, its sensitivity is approximately 70–95%.2,25–27 Both CK5/6 and WT1 are negative in sarcomatoid mesothelioma, whereas calretinin and D2-40 may show positive expression in this subtype.28 Furthermore, studies have shown that sarcomatoid mesothelioma loses high molecular weight cytokeratin (HMWCK) expression but retains low molecular weight cytokeratin (LMWCK) expression.29,30 In recent years, new markers such as mesothelin, Fibulin-3, HMGB1 protein, aquaporins, and osteopontin have been explored for the diagnosis of mesothelioma. However, most are not yet applicable in clinical practice due to study controversies, limitations to higher-stage disease, or specific tissue types.31
It has been reported that high expression of CAIX is associated with poor prognosis in various malignancies, highlighting its importance in tumor progression.16,17,19 CAIX was initially detected by reverse transcriptase polymerase chain reaction, showing high expression in mesothelioma in pleural fluids.32 Subsequently, immunohistochemical studies revealed abundant expression of CAIX in both malignant mesothelioma and benign mesothelial cells.22–24 Kivelä et al.22 also reported high expression of CAIX in 27 cases of malignant pleural mesothelioma, although the percentage of positive cases was not provided. In our current study, we demonstrated that IHC staining of CAIX has high sensitivity (100%) in detecting pleural EM and 91% (51/56) across all types of pleural mesothelioma, which is equal to or better than that of commonly used mesothelioma markers. On the other hand, the majority (99%) of non-small cell lung carcinomas were either negative or weakly positive for CAIX, including 100% (42/42) of adenocarcinomas, 97% (36/37) of squamous cell carcinomas, 100% of large cell lung carcinomas (2/2), and 100% of pleomorphic carcinoma (1/1). Our data demonstrate that CAIX can be an additional biomarker to facilitate the differential diagnosis in some morphologically challenging cases, especially EM vs. lung adenocarcinoma when routine IHC markers showed inconclusive staining results.
The molecular mechanism and biological significance of CAIX expression in mesothelioma may be related to its key role in tumorigenesis, as hypoxia and acidosis are characteristic features of many tumors due to the lactic acid fermentation response to insufficient oxygen supply.12,13 Upregulated under hypoxia conditions, CAIX stabilizes pH levels, helping cancer cells adapt to the adverse acidic conditions in the tumor microenvironment.33 Consequently, CAIX has been identified as an adverse factor in several malignancies, including SCC of the head and neck and breast cancers, due to hypoxia and acidosis increasing the likelihood of resistance to chemoradiation therapies.34
One limitation of our study is that CAIX sensitivity was only tested on pleural mesothelioma. Additional evaluation of CAIX expression in mesotheliomas from peritoneal or other sites is needed. Further validation of TMA findings is also warranted in resection specimens, particularly for CAIX specificity in non-small cell lung cancers.
Conclusions
Our study demonstrated that immunohistochemical staining for CAIX has high sensitivity and specificity for pleural epithelioid mesothelioma. CAIX IHC staining can be a useful tool for the differential diagnosis of pleural mesothelioma from its common mimicker, NSCLC.
Declarations
Acknowledgement
We thank the Department of Pathology for supporting faculty research initiatives and the Pathology Network Shared Resource of Roswell Park Comprehensive Cancer Center for technical assistance.
Ethical statement
This study was carried out in accordance with the recommendations of the Helsinki Declaration (revised in 2013). The protocol was approved by the Institutional Review Board of Roswell Park Comprehensive Cancer Center (Buffalo, NY). Individual consent for this retrospective analysis was waived.
Data sharing statement
All data used to support the findings of this study are included in the article.
Funding
The authors have received no funding.
Conflict of interest
The authors declare no conflict of interest related to this publication.
Authors’ contributions
Conceptualization, methodology, final analysis, writing, review, and editing (BX), methodology, data curation and analysis, original draft, editing (TLZ), methodology, data curation and analysis (ZHL), methodology and editing (EB). All authors have approved the final manuscript.
